4K HD HDMI converter HDMI audio separator HDMI optical fiber Audio Decoder Factory Direct Sales
Price section
Price from:
291,528 so'm
Guaranteed delivery time
If we are 45 days late, you will receive your order for free. More details
Always in touch with you
We will answer any questions every day.
Secure payment in a convenient way
We will accept payment by any card
BNPL available
About the product
Characteristic
- OEM
OEM available
- Item No.
HH-603
- Type
HDMI cable
- Brand
Other
- Applicable equipment
Computer Peripheral
- Model
HH603
- Time to Market
2015
- After-sales service
Store Three Guarantees
- SOURCE category
In stock
- Fastest shipping time
1-3 days
- Support one-piece delivery
Support
- Invoice
Invoice Not provided
Description
- 产品作用：把HDMI信号源连接到单个的HDMI显示设备（如电视、投影仪）并独立输出立体声+SPDIF信号，实现HDMI信号的音频同步分离。
- 产品应用：如对噪声、传输距离及安全有限制的场所、数据中心控制、信息分配、会议室演示以及教学环境和公司培训场所
- 产品特点：一路HDMI信号输入，转换成一路HDMI+Audio(SPDIF+R/L)输出
- 支持音频输出: SPDIF+模拟R/L输入
- 支持：最高支持1080P(50/60赫兹)可实现音频同步分离输出，有PASS、2.0CH、5.1CH三种音频模式可选择LED指示灯，当信号源或者信号端出于工作状态时，相应的指示灯会变亮。无信号损失安装简单
- 产品规格:
- HDMI分辨率24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- 支持视屏色彩格式…………24bit/deep color 30bit,36bit
- 音频输出……………………左右声道和光纤输出
- 最大传输带宽……………………………………225MHz
- 最大波特率………………………………………………6.75Gbps
- 输入/输出TMDS信号……………… 0.5~1.5Volts p-p
- 输入/输出DDC信号…………………… 5Volts p-p (TTL)
- 输入线缆长度…………≤15m AWG26 HDMI standard cable
- 输出线缆长度………………≤20m AWG26 HDMI standard cable
- 最大工作电流…………………………………………………500mA
- 电源适配器规格…Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- 工作温度范围……………………………(-15 to +55℃)
- 工作湿度范围…………………………5 to 90%RH (无凝缩）
- 包装尺寸(长*宽*高)……………………………15.4*9*2.5
英文描述参考：

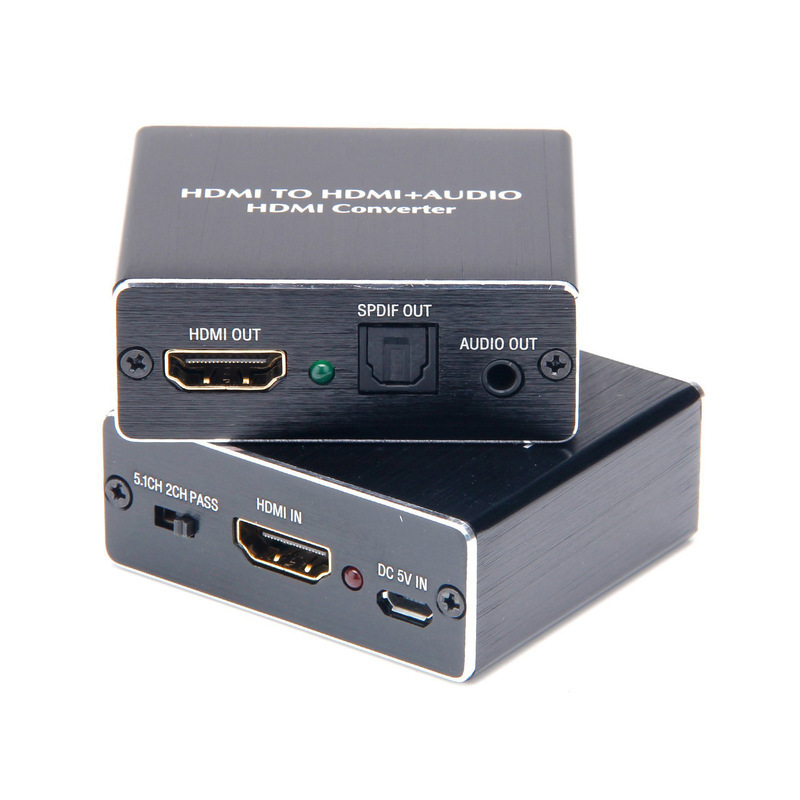

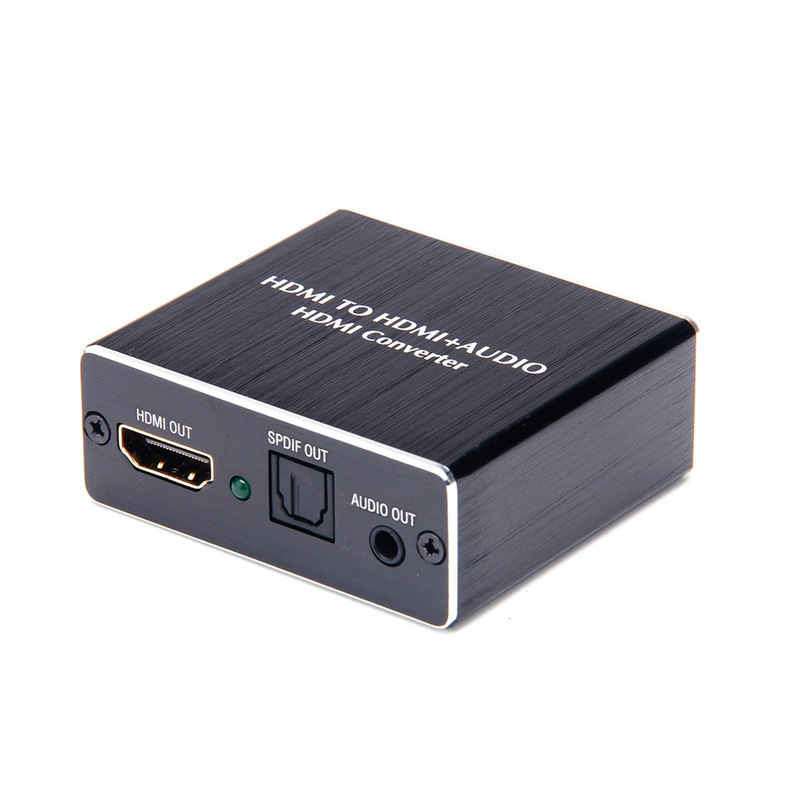

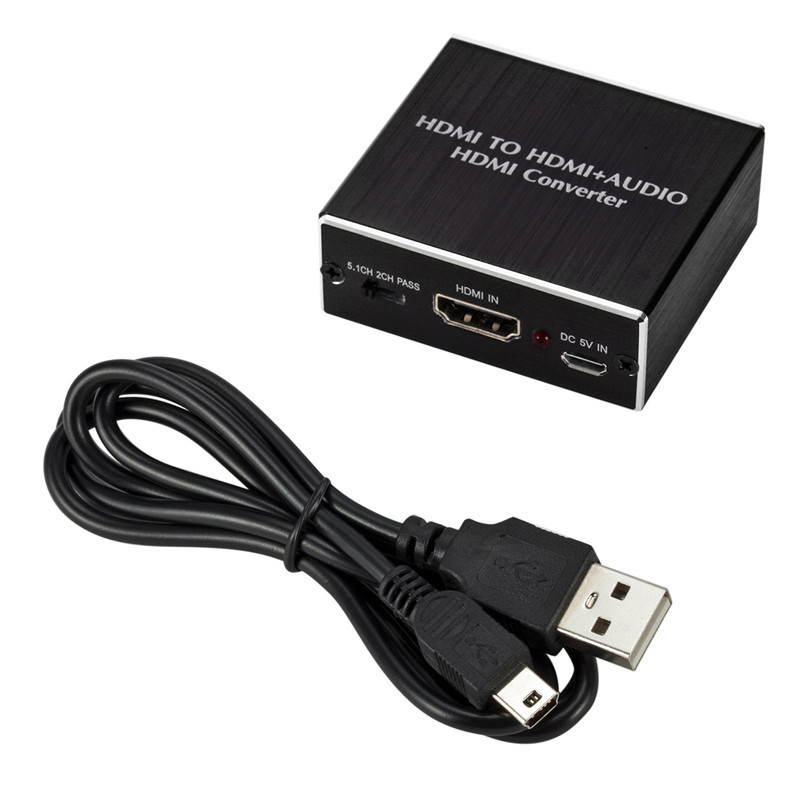

Product Description:
Connect the HDMI signal source to a single HDMI display device (such as a TV, projector) and output stereo + SPDIF signals independently to achieve the audio signal synchronous separation of HDMI signals.
Product applications: such as places with limited noise, transmission distance and safety, data center control, information distribution, conference room demonstrations, teaching environments and company training places
Product features: One HDMI signal input, converted into one HDMI + Audio (SPDIF + 3.5 Audio) output
Support audio output: SPDIF + 3.5 Audio
Support: up to 4K * 2K @ 30HZ can realize audio synchronous separation output, there are PASS, 2.0CH, 5.1CH three audio modes can choose LED indicator, when the signal source or signal end is in working state, the corresponding indicator Brighten. Simple installation without signal loss.
Specifications:
HDMI resolution 4K * 2K @ 30HZ / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support video color format ………… 24bit / deep color 30bit, 36bit
Audio output ...... 3.5 Audio and fiber output
Maximum transmission bandwidth ………………………… 225MHz
Maximum baud rate …………………………………… 6.75Gbps
Input / output TMDS signal ……………… 0.5 ~ 1.5Volts p-p
Input / output DDC signal ........................ 5Volts p-p (TTL)
Input cable length ............ ≤5m AWG26 HDMI standard cable
Output cable length ............ ≤5m AWG26 HDMI standard cable
Maximum working current ……………………………… 1000mA
Power adapter specifications… Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 1A
Operating temperature range ………………………… (-15 to + 55 ℃)
Operating humidity range …………………… 5 to 90% RH (no condensation)
Weight ………………………………………… 60G
Characters
Properties
- OEM
OEM available
- Item No.
HH-603
- Type
HDMI cable
- Brand
Other
Description
- 产品作用：把HDMI信号源连接到单个的HDMI显示设备（如电视、投影仪）并独立输出立体声+SPDIF信号，实现HDMI信号的音频同步分离。
- 产品应用：如对噪声、传输距离及安全有限制的场所、数据中心控制、信息分配、会议室演示以及教学环境和公司培训场所
- 产品特点：一路HDMI信号输入，转换成一路HDMI+Audio(SPDIF+R/L)输出
- 支持音频输出: SPDIF+模拟R/L输入
- 支持：最高支持1080P(50/60赫兹)可实现音频同步分离输出，有PASS、2.0CH、5.1CH三种音频模式可选择LED指示灯，当信号源或者信号端出于工作状态时，相应的指示灯会变亮。无信号损失安装简单
- 产品规格:
- HDMI分辨率24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- 支持视屏色彩格式…………24bit/deep color 30bit,36bit
- 音频输出……………………左右声道和光纤输出
- 最大传输带宽……………………………………225MHz
- 最大波特率………………………………………………6.75Gbps
- 输入/输出TMDS信号……………… 0.5~1.5Volts p-p
- 输入/输出DDC信号…………………… 5Volts p-p (TTL)
- 输入线缆长度…………≤15m AWG26 HDMI standard cable
- 输出线缆长度………………≤20m AWG26 HDMI standard cable
- 最大工作电流…………………………………………………500mA
- 电源适配器规格…Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- 工作温度范围……………………………(-15 to +55℃)
- 工作湿度范围…………………………5 to 90%RH (无凝缩）
- 包装尺寸(长*宽*高)……………………………15.4*9*2.5
英文描述参考：
Product Description:
Connect the HDMI signal source to a single HDMI display device (such as a TV, projector) and output stereo + SPDIF signals independently to achieve the audio signal synchronous separation of HDMI signals.
Product applications: such as places with limited noise, transmission distance and safety, data center control, information distribution, conference room demonstrations, teaching environments and company training places
Product features: One HDMI signal input, converted into one HDMI + Audio (SPDIF + 3.5 Audio) output
Support audio output: SPDIF + 3.5 Audio
Support: up to 4K * 2K @ 30HZ can realize audio synchronous separation output, there are PASS, 2.0CH, 5.1CH three audio modes can choose LED indicator, when the signal source or signal end is in working state, the corresponding indicator Brighten. Simple installation without signal loss.
Specifications:
HDMI resolution 4K * 2K @ 30HZ / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support video color format ………… 24bit / deep color 30bit, 36bit
Audio output ...... 3.5 Audio and fiber output
Maximum transmission bandwidth ………………………… 225MHz
Maximum baud rate …………………………………… 6.75Gbps
Input / output TMDS signal ……………… 0.5 ~ 1.5Volts p-p
Input / output DDC signal ........................ 5Volts p-p (TTL)
Input cable length ............ ≤5m AWG26 HDMI standard cable
Output cable length ............ ≤5m AWG26 HDMI standard cable
Maximum working current ……………………………… 1000mA
Power adapter specifications… Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 1A
Operating temperature range ………………………… (-15 to + 55 ℃)
Operating humidity range …………………… 5 to 90% RH (no condensation)
Weight ………………………………………… 60G
