Auto parts extension Controller daytime running light dimming delay line multifunctional car LED daytime running light modification accessories

HS:8542319000

产品重量：29G
产品尺寸：微小型1.7*2.1*3.9CM
产品电压：12-18V
工作电流：3A
装箱数量：500个
外箱尺寸：60*43*30cm
重量：17kg

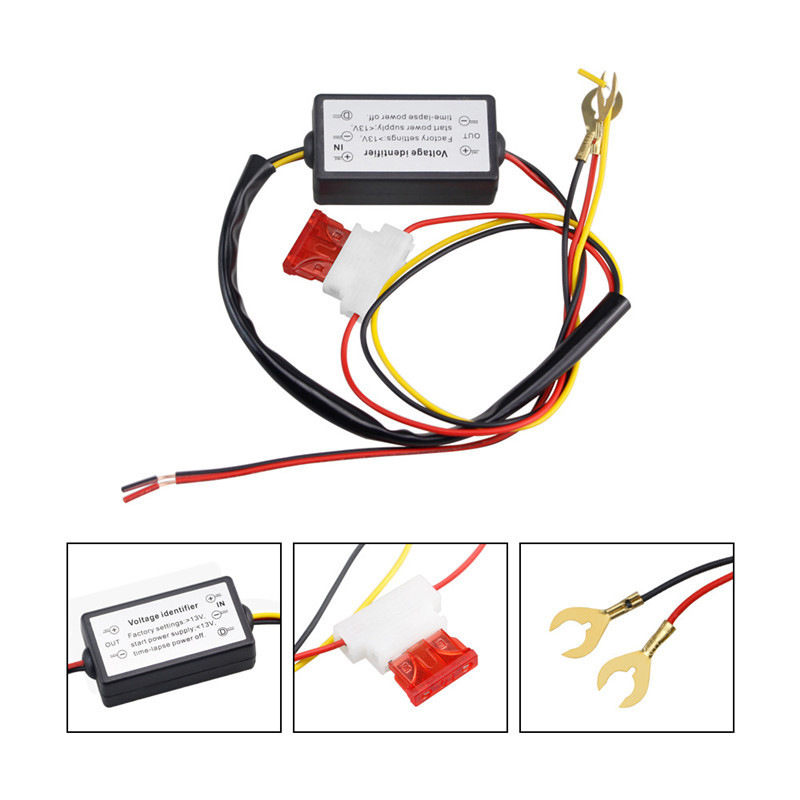

接线说明：螃蟹叉红线接电瓶正极，黑线接负极，OUT端红线接灯正极，黑线接灯负极
产品特点：产品外形迷你，轻小。防水。适合所有车型。带减光延时功能！！
智能LED日行灯鹰眼灯控制器　
常亮+减光+延时+自动开关
实现当启动车子时（电压高于13V+），日行灯自动亮灯，当开启大灯（或阅读灯）时，日行灯减光（变暗）、当车子熄火时（电压低于12.5V），日行灯延时15 秒后灭灯！
温馨提示：刚接上电瓶后，日行灯会亮灯15秒左右再灭灯属于正常现象（实现延时功能），之后需启动车子，当电压13V+才开始工作！
产品适用范围
1、启动电压为13V+，熄火电压低于12.5V（若高于此数值会延长几分钟后直到电压降下来才灭灯）
2、1对日行灯总功率不超过18W（大多数日行灯总功率都不会超过）
接线方式：
1、先将左右两边的日行灯正极相接、负极相接
2、将控制器上带有保险丝的输入端红线和黑线接电瓶正、负极，输出端的红线和黑色接日行灯的正、负极
3、将控制器上的黄线接大灯（或阅读灯）的开关正极，当开启大灯（或阅读灯）时，日行灯亮度会减半（变暗），实现减光功能（黄线可以选择不接，即放弃这个功能，不影响其它使用）
智能工作：
当启动汽车发动机时，电压13V+，日行灯自动亮灯，当车子熄火时，电压低于12.5V（不适合熄火后电压高于12.5V的汽车），日行灯会延时15秒后自动灭灯，便于照明车主回家， 实现延时灭灯功能！

 HS:8542319000

Product Description:
Product weight: 29g
Product size: Miniature 1.7 * 2.1 * 3.9cm
Product voltage: 12-18v
Working current: 3A
Packing quantity: 500
Outer box size: 60 * 43 * 30cm
Weight: 17kg
Product features: Mini shape, light and small. Waterproof. Suitable for all models. With dimming delay function!!

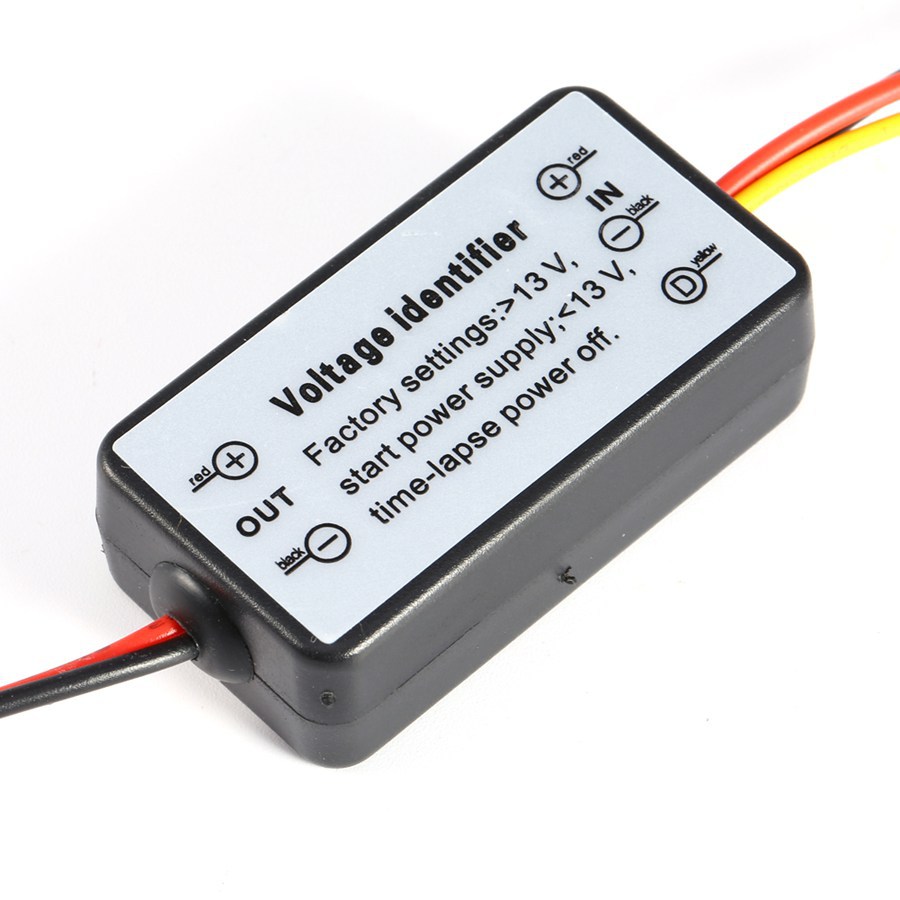

Eagle eye light intelligent LED controller
Normally on + dimming + delay + automatic switch
When the vehicle is started (the voltage is higher than 13V +), the daytime running lamp will automatically turn on. When the headlamp (or reading lamp) is turned on, the daytime running lamp will be dimmed (dimmed). When the vehicle is turned off (the voltage is lower than 12.5V), the daytime running lamp will turn off after a delay of 15 seconds!
Warm tip: just after the battery is connected, the daily light will be on for about 15 seconds and then turn off. It is normal (to realize the delay function). Then start the car and start working when the voltage is 13V +!
Product scope of application
1. The starting voltage is 13V +, and the flameout voltage is lower than 12.5V (if it is higher than this value, it will be extended for several minutes until the voltage drops down)
2. 1. The total power of the pair of daytime running lights shall not exceed 18W (the total power of most daytime running lights will not exceed)
Wiring mode:
1. First connect the positive and negative poles of the daytime running lights on the left and right sides
2. Connect the red wire and black wire of the input terminal with fuse on the controller to the positive and negative poles of the battery, and the red wire and black wire of the output terminal to the positive and negative poles of the daytime running lamp
3. Connect the yellow line on the controller to the positive pole of the headlamp (or reading lamp) switch. When the headlamp (or reading lamp) is turned on, the brightness of the daytime running lamp will be halved (dimmed) to realize the dimming function (the yellow line can choose not to connect, that is, abandon this function and do not affect other uses)
Smart work:
When the car engine is started, the voltage is 13V +, and the daily running light will be on automatically. When the car is off, the voltage is lower than 12.5V (not suitable for cars with a voltage higher than 12.5V after off). The daily running light will automatically turn off after a delay of 15 seconds, which is convenient for lighting the owner to go home and realize the delayed light off function!
