Induction universal electric door car bluetooth automatic switch door flat sliding door motor accessories USB
Price section
Price from:
141,062 so'm
Specifications
1xUSB
1xReceiver and 1xUSB
1xReceiver and 2xUSB
1xReceiver and 3xUSB
Guaranteed delivery time
If we are 45 days late, you will receive your order for free. More details
Always in touch with you
We will answer any questions every day.
Secure payment in a convenient way
We will accept payment by any card
BNPL available
About the product
Characteristic
- Origin
China
- induction card identification
0
- Working power supply
AC/DC 12-24V
- Ambient temperature
-10-20
- Item No.
825-USB
- Card storage capacity
0
- Type
Intelligent access controller
- Brand
Other
- Relative humidity
0
- Model
Automatic Door Access Control System Usb Receiver Kit
- Whether to import
No
- Order No.
825-USB
- Licensable private label
Yes
Description
Specifications
1. Channel: 2 channels
2. Frequency: 2.4G
3. Receiver operating voltage: AC/DC 12-24V
4. Receiver operating current: 18mA ± 2
5. Working voltage of USB plug: 5V DC
6. USB plug working current: 1mA ± 0.5
7. USB plug memory quantity: 340pcs
8. Distance: Insert the USB plug into the car for 10m
Function of automatic door receiver:

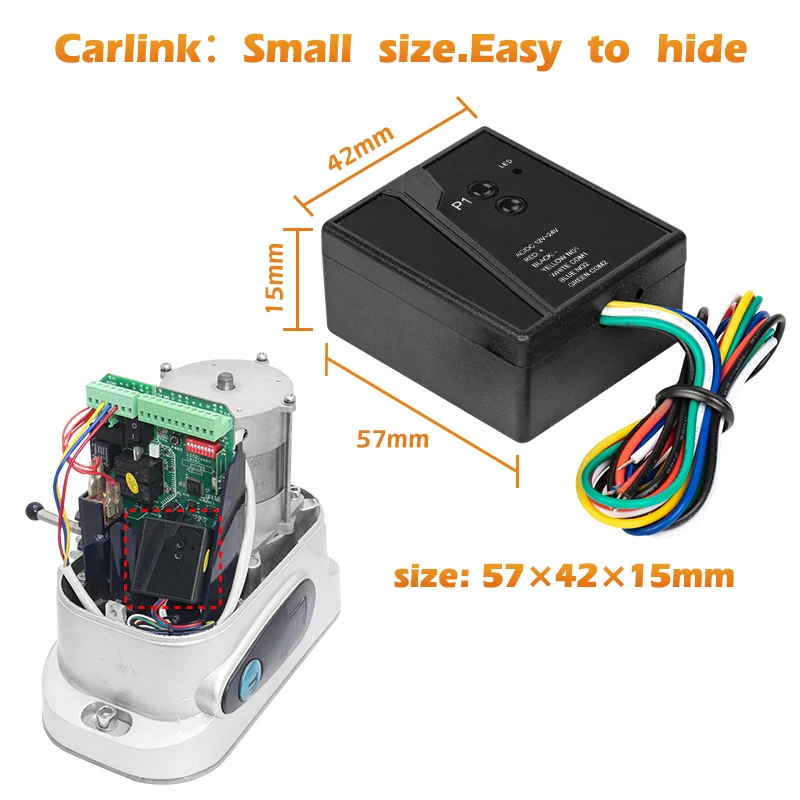

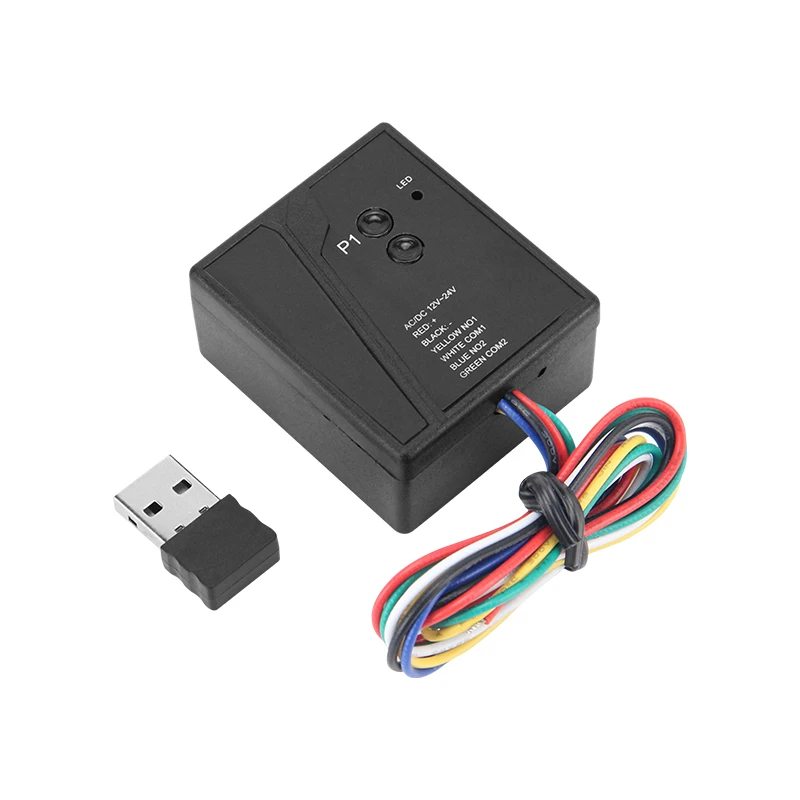

This receiver and USB plug set can be used for sliding door motors, swimming door motors, garage doors, and boom guardrails. People can install the receiver into their door motor and match the code for the receiver and USB plug. When people drive a car with a USB plug inserted into the USB charging port, the car door will automatically open within 10 meters. If the door motor has an automatic closing function, the rear door of the car will automatically close when entering.
How to encode USB tags into the receiver
1. Learning code: Press button P1 once in the receiver, the USB tag will supply power to the receiver, and then input the code into the receiver. If a code appears, the LED will flash twice. Press the button again successfully to exit the learning mode. If encoding fails, re encode. Each receiver can encode up to 340 USB plugs.
2. Delete code: Press and hold button P1 for 5 seconds. After the LED flashes five times, all codes will be deleted, and then release the button. How to connect wires and control the yellow and white lines of the gate for the first channel. The blue and green lines represent the second channel. When power is supplied to the USB plug, the first channel will open and the door will open. If the gate motor has an automatic closing function, there is no need to use the second channel. If the gate motor does not have an automatic closing function, it can be disconnected from the USB power supply, and the second channel and gate will close the plug after 10 seconds. Alternatively, when the vehicle is not within the detection distance, the gate will automatically close. The receiver and USB plug can be used for sliding door motors, swimming door motors, garage doors, and boom guardrails. People can install the receiver into the gate motor and match the code of the receiver and USB plug. When people insert a USB plug into the charging port while driving, the door will automatically open within 10 meters. If the gate motor has an automatic closing function, the car will automatically close after entering the gate.
