Colorful Plastic Plate Spectrophotometer St-700D and St-700D Plus
0.0
0 sold.
Minimum quantity is: 1 pcs
Price section
Price from:
97,849,869 so'm
Specification
ST-700d
97,849,869 so'm
100 availableGuaranteed delivery time
If we are 45 days late, you will receive your order for free. More details
Always in touch with you
We will answer any questions every day.
Secure payment in a convenient way
We will accept payment by any card
BNPL available
select product
select product
Select payment by installments when placing your order. The final installment cost is calculated at checkout.
Colorful Plastic Plate Spectrophotometer St-700D and St-700D Plus
About the product
Characteristic
- Brand
Graigar
- Imported: Yes/No
No
Description
产品描述
彩色塑料板分光光度计ST-700d和ST-700D plus
| 原产地 | Guangdong, China |
| 保修期 |
1年
|
| 支持定做 | OEM |
| 品牌 | Graigar |
| 材料 | 塑料 |
| 色彩度 | 强大的 |
| 动力来源 | 电子 |
| 型号 | ST-700d |
| 测量几何 | D/8 |
| 光源 | 组合全光谱LED光源，UV光源 |
| 传感器 | 硅光电二极管阵列 (双排40组) |
| 波长范围 | 400 ~ 700nm |
| 测量反射率范围 | 0-200% |
| 密度标准 | ISO状态A、E、I、T |
| 色彩空间 | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| 测量时间 | 1.5秒 |
| 测量孔径 | 8mm 4mm 1 * 3mm孔径 |
| 销售单位 | 单一商品 |
| 单品包装尺寸 | 37X17X31 厘米 |
| 单品毛重 | 4.000 公斤 |
产品描述
彩色塑料板分光光度计ST - 700d和ST - 700D plus
本仪器是一种在光谱架构下的便携式高级光栅分光色度计或分光光度计。除了确保准确的相对值AE外，还保证绝对值L、A和B的长期准确性。它适用于塑料电子、化工涂料、油墨印刷、纺织印染、汽车电子、医学分析、化妆品和食品分析等的精确颜色传递和质量控制。它也广泛应用于科研机构、实验室等领域。
在D/8°几何光学照明条件下，该仪器具有准确且稳定的颜色测量能力、大容量存储，配备USB和蓝牙双通信模式，并且其PC颜色管理软件具有强大的扩展功能，能够针对多种颜色空间中的不同色差公式和颜色指数实现精确测量和呈现。
12、Support Android, IOS, Windows, WeChat Applet, Harmony OS.
Specification
|
Product Name
|
ST-700d
|
ST-700d Plus
|
|
Optical Geometry
|
D/8（diffused illumination, 8-degree viewing angle）
SCI & SCE; Include UV & Exclude UV. Conform to Standards: CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
|
|
Integrating Sphere Size
|
Φ40mm
|
|
|
Light Source
|
Combined Full Spectrum LED Lamp, UV Lamp.
|
|
|
Spectroscopic Method
|
Plane Grating
|
|
|
Sensor
|
Large-area silicon photodiode array (40 pairs of dual columns)
|
|
|
Wavelength Range
|
400~700nm
|
360~780nm
|
|
Wavelength Interval
|
10nm
|
|
|
Reflectance Range
|
0~200%
|
|
|

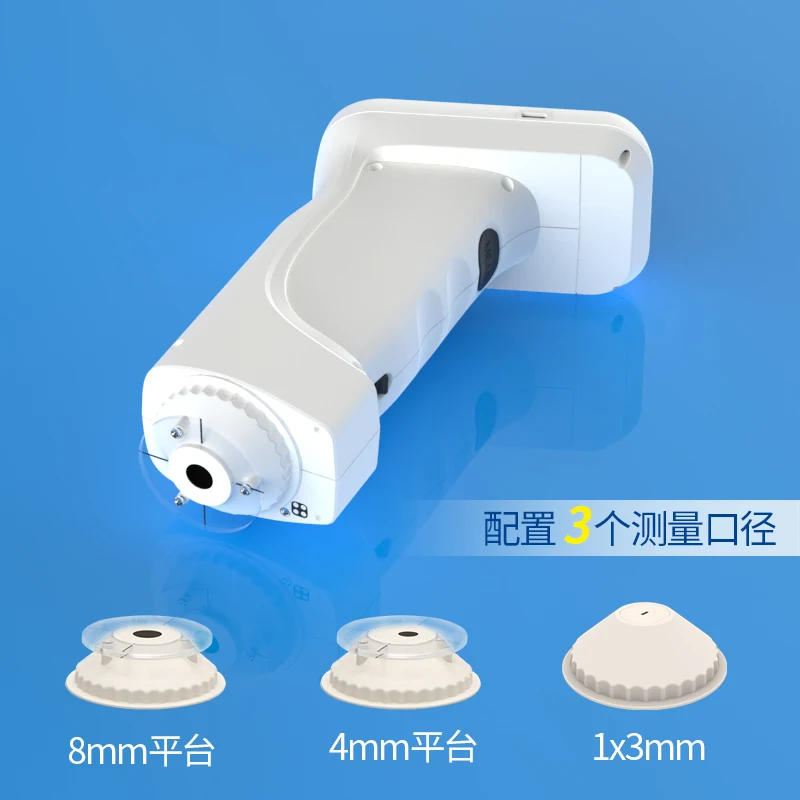

Measuring Apertures
|
Three Apertures: 8mm Platform + 4mm Platform + 1*3mm
|
Five Apertures: 8mm Platform + 8mm Tip + 4mm Platform + 4mm Tip + 1*3mm
|
|
Locating Method
|
Cross Locating + Camera Locating
|
|
|
Whiteboard Calibration
|
Non-contact automatic whiteboard Calibration
|
|
|
SCI/SCE
|
Measure SCI+SCE at the same time
|
|
|
Color Spaces
|
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
|
|
|
Color Difference Formula
|
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
|
|
|
Other Colorimetric Index
|
Spectrum Reflectance Rate, WI(ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, TaubeBergerStensby),
YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt, Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness(My,dM), Color Density CMYK(A,T,E,M), Tint(ASTM E313-00),Munsell(Some functions are realized through the computer) |
|
|
Observer Angle
|
2°/10°
|
|
|
Illuminants
|
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP) |
|
|
Displayed Data
|
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
|
|
|
Measuring Time
|
About 1.5s
|
|
|
Repeatability
|
Chromaticity Value: MAV/SCI, within ΔE*ab 0.022 (after warm-up and calibration, the average value of measuring 30 times on the
whiteboard at intervals of 5s) |
Chromaticity Value: MAV/SCI, within ΔE*ab 0.02 (after warm-up and calibration, the average value of measuring 30 times on the
whiteboard at intervals of 5s) |
|
Spectral reflectance: MAV/SCI, standard deviation within 0.07% (400~700nm)
|
Spectral reflectance: MAV/SCI, standard deviation within 0.07% (400~700nm)
|
|
|
Inter-instrument Error
|
MAV/SCI, ΔE*ab within 0.2（The average value of measuring BCRA series Ⅱ 12 color tiles）
|
MAV/SCI, ΔE*ab within 0.18（The average value of measuring BCRA series Ⅱ 12 color tiles）
|
|
Display Accuracy
|
0.01
|
|
|
Measurement Mode
|
Single measurement, average measurement (2~99 times)
|
|
|
Data Storage
|
APP mass storage
|
|
|
Accuracy Guarantee
|
Guarantee passing the Grade 1 metrology
|
|
|
Dimension
|
Length X Width X Height=114X70X208mm
|
|
|
Weight
|
About 435g (Calibration Base not included)
|
|
|
Battery
|
Lithium battery, 3.7V, 5000mAh, 8500 times measurements within 8 hours
|
|
|
Illuminant Life Span
|
More than 1.5 million measurements in 10 years
|
|
|
Display
|
TFT True Color 3.5inch，Capacitive Touch Screen
|
|
|
Data Port
|
USB,Bluetooth®5.0
|
|
|
Data Storage
|
500 pcs standard samples, 20,000 pcs samples (one piece of data can include SCI+SCE at the same time), APP/PC mass storage
|
|
|

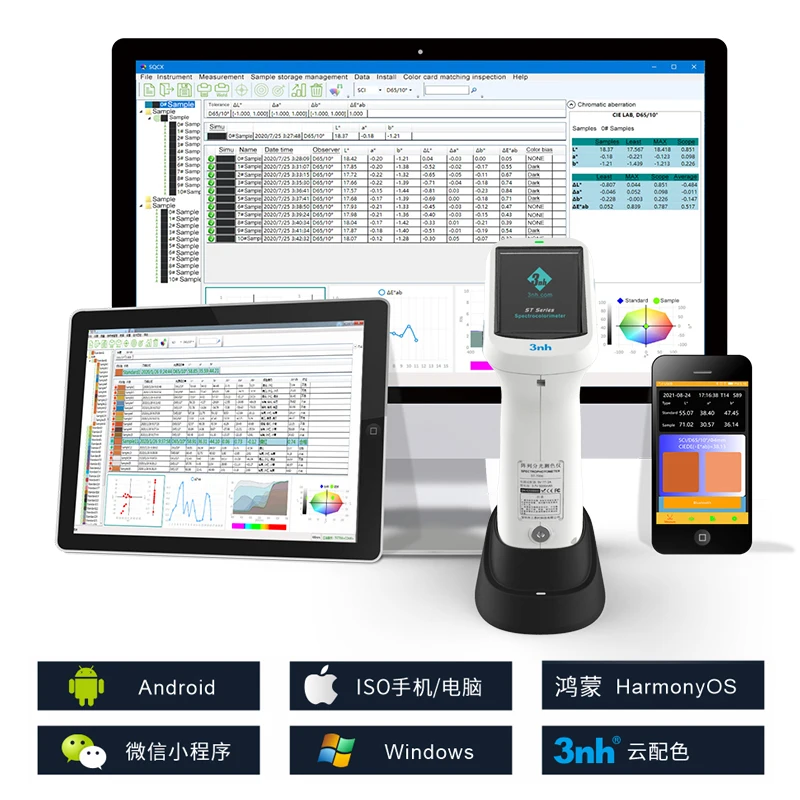

Software Support
|
Andriod, IOS, Windows, Wechat APPlet, Harmony OS.
|
|
|
Language
|
Simplified Chinese, Traditional Chinese, English
|
|
|
Operating Environment
|
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
|
|
|
Storage Environment
|
-20~50℃，0~85%RH（no condensing）
|
|
|
Standard Accessory
|
Power adapter, USB cable, Manual, Quality Management Software (official website download), Calibration Box, Protective Cover,
Wrist Strap, Measuring Apertures |
|
|
Optional Accessory
|
Micro-printer, Powder Test Box.
|
|
|
Note：
|
Technical parameters are for reference only, subject to actual sales.
|
|
