Широковещательный SDI-разветвитель один-в-четыре-Выход 1080P SD/HD/3G SDI 1x4 SPLITTER

3G / HD/ SD SDI分配器1x4分配器

一、简介

1×4 SDI分配器分配允许1 SDI，HD-SDI或3G-SDI视频源4 SDI/ HD-SDI/3G-SDI同时显示。该产品内置的自动识别和SD-SDI，HD-SDI，3G-SDI SDI信号的所有格式兼容。它是支持2.97Gbps带宽，并支持在长距离无损传输。

二、特征

1.1 SDI输入信号拆分为4 SDI水槽设备。

2.支持SD-SDI（270MB/ s）的HD-SDI（1.485Gb/ s）的3G-SDI（2.97Gb/ s）的视频格式。

3.内置电缆均衡，时钟恢复和驱动器。

4.支持分辨率高达1920×1080@ 60 Hz的。

5.Supports信号可达300m为标清信号，200米的高清信号和100米的3G信号的输入和输出的距离。

6.Supports5-12V宽电压输入。

三、 包装

1.1x4 SDI分配器---------------------------------------------------1PCS

2.5V1A直流电源适配器---------------------------------------------1PCS

3.操作手册----------------------------------------------------------1PCS

四、产品规格

1.频率带宽的3Gbps

2.SDI分配器输入端口1 x BNC母输入端

3.SDI分配器输出端口4×BNC女输出端口

4.电源供应DC5V 1A

5.ESD保护人体模型：±8kV的（气隙放电）

6.±4kV的（接触放电）

7.Dimensions（毫米），70（W）×145（D）×25（H）

8.Weight350

9.Operating温度0°C～40°C / 32°F～104°F

10..Storage温度-20°C～60°C / -4°F～140°F

11.Relative湿度20～90％RH（无冷凝）

12.Power消耗（最大）1.5W

五、控制和功能

前面板

1.ON/ OFF：电源ON / OFF开关。

2.电源LED：当设备与电源相连，此红色LED点亮。

3.LOCK LED：此红色LED指示灯亮起时，在SDI信号插头。

后面板

1.SDI输入：此插槽是连接从SDI摄像机SDI源输出的。

2.SDI OUTPUT：这些插槽，你用同轴电缆（RG6）连接SDI显示器或监视器。

3.DC5V-12V型：将5V或12V直流电源插入本机并连接适配器AC电源插座。

3G/HD/SD_SDISplitter 1 x4

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

I. Introduction

1×4 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 4 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

II. Features
1.1 SDI input signal split to 4 SDI sink devices.
2.Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
3.Built-in cable equilibrium, clock recovery and drive.
4.Supports resolutions up to 1920x1080@60Hz.
5.Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
6.Supports 5-12V wide voltage input.

III. Package
1.1x4 SDI Splitter ---------------------------------------------------------------------------1PCS
2.5V1A DC Power Supply adapter ------------------------------------------------------- 1PCS
3.Operation Manual -------------------------------------------------------------------------1PCS

IV. Specifications

1.Frequency Bandwidth 3Gbps
2.SDI Splitter Input Ports 1 x BNC Female input port
3.SDI Splitter Output Ports 4 x BNC Female output ports
4.Power Supply DC 5V 1A
5.ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
6.Dimensions (mm) 70(W) X 145 (D) X 25 (H)
7.Weight 350g
8.Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
9.Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
10.Relative Humidity 20 ~ 90% RH (Non-condensing)
11.Power Consumption (Max) 1.5W

V. Operation controls and Functions
Front Panel

1.ON/OFF: Power on/off switch.

2.POWER LED: This red LED illuminate when the device is connected with power supply.
3.LOCK LED: This red LED illuminate when the SDI signal plug in.

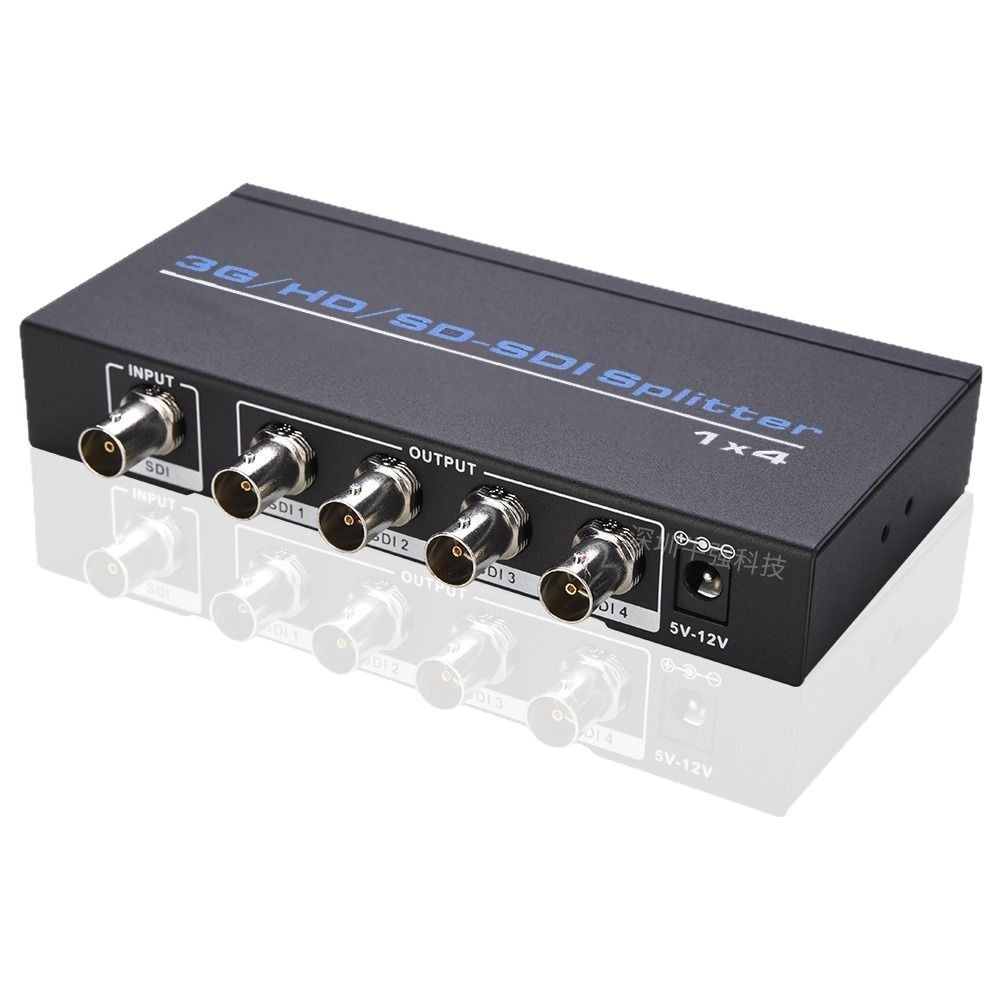

Rear Panel

1.SDI INPUT: This slot is where you connect the SDI source output from SDI Camera.
2.SDI OUTPUT: These slots are where you connect the SDI displays or monitors with coaxial cable (RG6).
3.DC 5V-12V: Plug the 5V or 12V DC power supply into the unit and connect the adapter to AC wall outlet.

VI. Application Example
