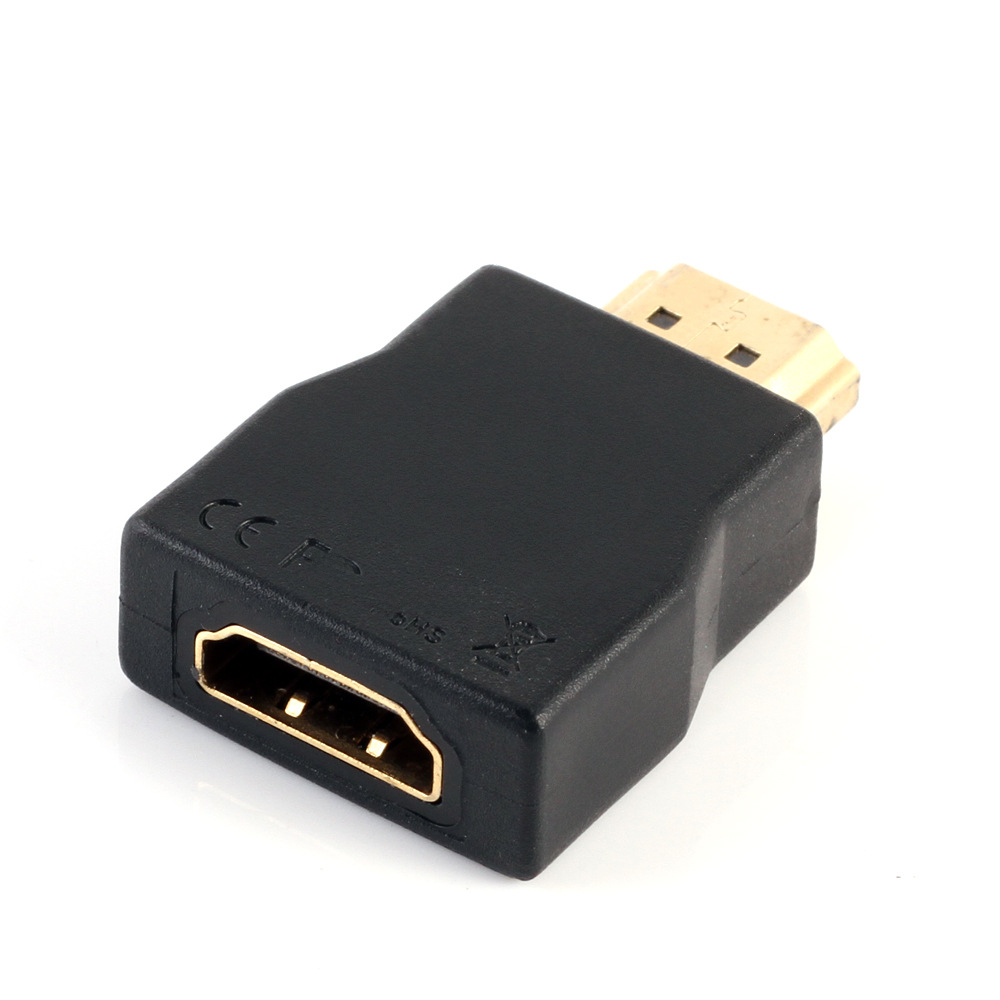

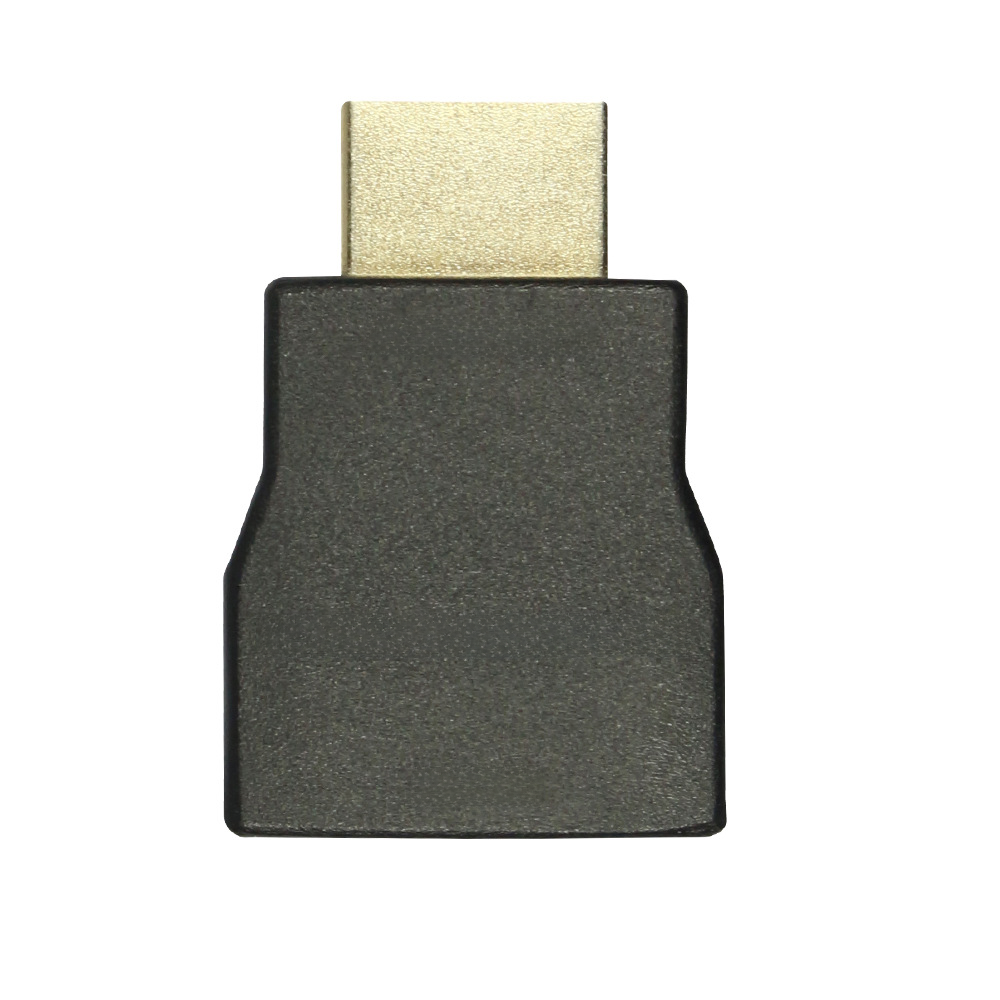

HDMI Surge Protector HDMI устройство защиты от перенапряжений молниезащиты от тока
Price section
dan boshlab
211 593 so'm
Модель
HP01
Kafolatlangan yetkazib berish muddati
Agar biz 45 kun kechiksak, buyurtmani bepul olasiz. Batafsil
Har doim siz bilan aloqada
Biz har kuni savollarga har qanday savollarga javob beramiz.
To'lovni qulay usulda xavfsiz qiling
Biz to'lovlarni turli xil usullarda qabul qilamiz.
Bo'lib to'lash mavjud
Mahsulot haqida
Xususiyatlar
- Марка
Нейтральный
- Ли импортировать
HP01
Tavsif
HDMI Surge ProtectorHDMI电涌保护器
Dimensions 9*5.5*1.5CM
Weight 20g
电涌保护器 hdmi esd
浪涌保护器 防雷浪涌保护器 信号浪涌保护器 浪涌保护器spd 防雷保护器
HDMi保护器，能保护好主机及电视机，不用再雷击了。
这是一款超低电容静电放电(ESD)保护器件系列的首款产品。单线ESD保护器件，提供0.5皮法(pF)电容和低钳位电压。
这元件采用适合ESD保护应用的最小封装，非常适用于手机、MP3播放器、个人数字助理(PDA)和数码相机等便携应用的高速数据线路保护。
随着更新的集成电路技术使用的几何尺寸越来越小和工作电压越来越低，不断更新换代的便携产品对ESD电压损伤也越趋敏感。
与此同时，便携电子系统也要求电容更低，以维持其高速数据线路应用的信号完整性。
基于硅瞬态电压抑制(TVS)二极管的传统片外保护解决方案提供低钳位电压和快响应时间，但它们的大电容限制了其在高速应用中的使用。
聚合物和陶瓷压敏电阻等竞争性片外保护技术提供低电容，但它们的高ESD钳位电压限制了其保护极敏感IC免受ESD损伤的能力。
使用HDMI保护器成为手机、MP3播放器、PDA和数码相机等高清HDMI接口转换的空间受限型产品的高速应用理想解决方案。
Mini Portable HDMI Surge Protector ESD Surge Protection 1080P HDMI switch / distributor
Introduction
The HDMI surge protector is used to protect the HDMI devices against Electrostatic discharge/Cable DischargeEvents/Lightning.
It is active on all TMDS channels and will act as a final defense for ESD and lightning surge.
Feature：
1.Compliant with HDM1.4,HDCP.
2.Protect HDMI Input and Output for ESD and lighting surge.
3.Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV(contact).
4.Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
5.Meet IEC 61000-4-5 (Lightning) 5A (8/20μs).
6.Spark voltage/Current protection.
Package
HDMI Surge Protector 1pcs
User Manual 1pcs
Specifications
Input 1 x HDMI Male port
Output 1 x HDMI Female port
Operating Temperature Range
0℃- 40℃ / 32℉-104℉
Operating Humidity Range
5 to 90 % RH (no condensation)
Dimensions 9*5.5*1.5CM
Weight 20g
Connections and Operations
1. Insert the male HDMI jack of the protector to the HDMI out ofthe Source(DVD,PS3..etc)
2. Connect the HDMI out of the protector to the display(HDTV)by HDMI cable.
Features:
The HDMI surge protector is used to protect the HDMI devices from Electrostatic discharge, Cable Discharge Events. It is active on all TMDS channels and will act as a final defense for ESD and surge.
1. Compliant with HDM1.4, HDCP.
2. Protect HDMI Input and Output for ESD and lighting surge.
3. Meet IEC 61000-4-2 (ESD) +/-15kV (air), +/-8kV (contact).
4. Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
5. Meet IEC 61000-4-5 ( 5A (8/20us).
6. Spark voltage / Current protection.
7. With compact portable design, and easy to use, support plug and play.
Operations:
1. Insert the male HDMI jack of the protector to the HDMI out of the Source(DVD,PS3..etc)
2. Connect the HDMI out of the protector to the display (HDTV) by HDMI cable.
Specification:
Types: Connector
Material: ABS, Metal
Input Port: HDMI male
Output Port: HDMI female
