Pon Измеритель мощности Тестер оптоволоконного кабеля Тестовое оборудование Catv Базовая версия без источника света Красный свет
Price section
dan boshlab
3 197 401 so'm
Технические характеристики
Базовая версия (без функции освещения и функции красного света)
Kafolatlangan yetkazib berish muddati
Agar biz 45 kun kechiksak, buyurtmani bepul olasiz. Batafsil
Har doim siz bilan aloqada
Biz har kuni savollarga har qanday savollarga javob beramiz.
To'lovni qulay usulda xavfsiz qiling
Biz to'lovlarni turli xil usullarda qabul qilamiz.
Bo'lib to'lash mavjud
Mahsulot haqida
Xususiyatlar
- Происхождение
Китай
- размер
185*80*50
- Товар No.
TM70B
- Бренд
T&M Tools
- Модель
TM70B
- Цель
Специально для тестирования сети
- вес
1.5
- Импортировать ли
Нет
- Точность измерения
другое
- Диапазон измерения
другое
- Обработка и настройка
Нет
- Номер заказа
TM70B
Tavsif

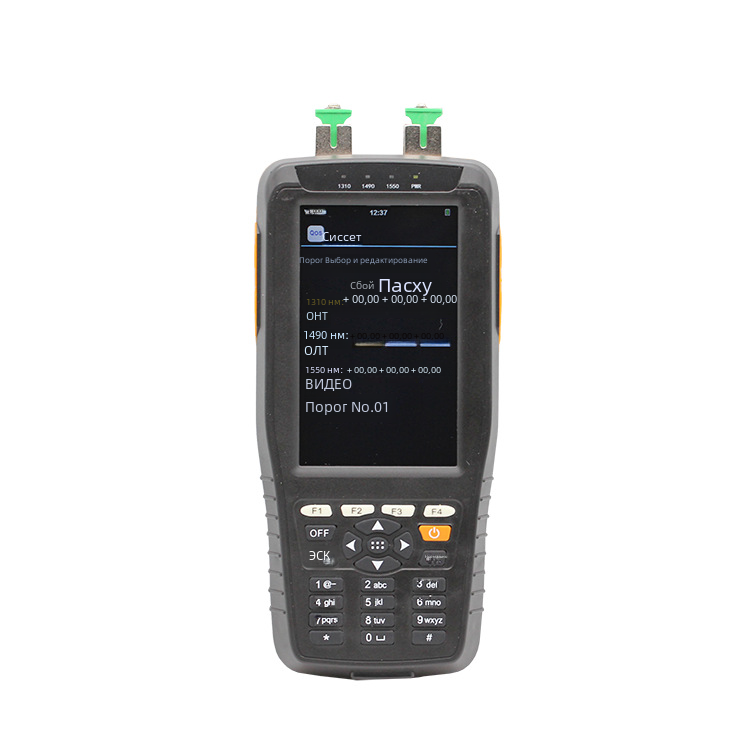

TM70B PON Power Meter
---Only PON Power Meter
Description
TM70B PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators.
Main Features
1. Handheld, easy to operate
2. Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm,
3. Can test the burst mode signal of 1310nm
4. True color screen
5. Friendly operation interface, human message management and operation function
6. Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
7. Relative value choice and edit function
8. Can set the threshold value, upload data, and calibrate wavelength through management software
9. Auto shut off (according to set value)
10. Auto backlight off(according to set value)
11. 6600mAh Lithium battery
12. Power saving design (Low voltage self check and power off)
13. Real-time clock display
14. Optical Power Meter （ Optional Function)
15. Visual Fault Locator ( Optional Function
Specifications
PON Power Meter
| Standard wavelengths | 1310 | 1490 | 1550 |
| (upstream) | (downstream) | (downstream) | |
| Pass zone(nm) | 1260~1360 | 1470~1505 | 1535~1570 |
| Range(dBm) | -50~+10 | -50~+10 | -45~+23 |
| Isolation @1310nm(dB) | >40 | >40 | |
| Isolation @1490nm(dB) | >40 | >40 | |
| Isolation @1550nm(dB) | >40 | >40 | |
| Accuracy | |||
| Uncertainty(dB) | ±0.5 | ||
| Polarization Dependent Loss (dB) | <±0.25 | ||
| Linearity(dB) | ±0.1 | ||
| Through Insertion Loss(dB) | <1.5 | ||
| Resolution | 0.01dB | ||
| Unit | dBm/xW | ||
LCD: 480*800, True color touch screen
Battery: 3.7V 6600mAH rechargeable Lithium battery
Working temperature: -10~60°C
Storage Temperature: -25~70°C
Dimensions(mm) : 185*80*50
Weight(g): about 370g
实拍整体包装
（仅供参考，根据订单要求不同 部分包装或配件会有差异，请已收货实物为准）
单台外箱尺寸：22.8*15.6*7.5cm
（核算运费的时候请注意每个边加2cm）
单台重量(毛重):950g
