Цифровой портативный осциллограф Dso Fnirsi Pro, полоса пропускания 5 м, частота дискретизации 20 мс/с, английская версия, портативный инструмент
5.0
30 ta sotildi
Eng kam miqdor: 1 dona
Price section
dan boshlab
893 392 so'm
Технические характеристики
Стандарт Про
893 392 so'm89 512 ta zaxirada mavjud
PRO + P6100 высокий матч
968 625 so'm99 218 ta zaxirada mavjud
Kafolatlangan yetkazib berish muddati
Agar biz 45 kun kechiksak, buyurtmani bepul olasiz. Batafsil
Har doim siz bilan aloqada
Biz har kuni savollarga har qanday savollarga javob beramiz.
To'lovni qulay usulda xavfsiz qiling
Biz to'lovlarni turli xil usullarda qabul qilamiz.
Bo'lib to'lash mavjud
maxsulotni tanlang
maxsulotni tanlang
Buyurtmani rasmiylashtirish paytida muddatli to‘lovni tanlang. Muddatli to‘lovning yakuniy qiymati rasmiylashtirishda hisoblanadi.
Цифровой портативный осциллограф Dso Fnirsi Pro, полоса пропускания 5 м, частота дискретизации 20 мс/с, английская версия, портативный инструмент
Mahsulot haqida
Xususiyatlar
- Происхождение
Шэньчжэнь
- Полоса пропускания
5
- Тип
Цифровой осциллограф
- Марка
ВЕСТБИГ
- Количество каналов
1
- Модель
ДСО ФНИРСИ ПРО
- Вес
ДСО ФНИРСИ ПРО
- Ли импортировать
Нет
- Частота дискретизации
ДСО ФНИРСИ ПРО
- Настройка обработки
Нет
- Приказ №.
ДСО ФНИРСИ ПРО
- Лицензионная частная марка
Да
Tavsif
2019年新款示波器，海外热销
在本店采购此产品在外贸平台销售不会侵权，请放心上架。
DSO FNIRSI PRO 数字手持示波器 5M带宽20MSps采样率 英文版
产品重量：PRO 标配 178克 尺寸：12x11x2.5cm
PRO 高配 带 P6100 盒装 230克 尺寸：20x11x3.8cm
发货清单：
1. DSO FNIRSI PRO 示波器主机*1
2. 鳄鱼夹测试夹*1
3. USB充电线*1
4. 英文纸质说明书*1

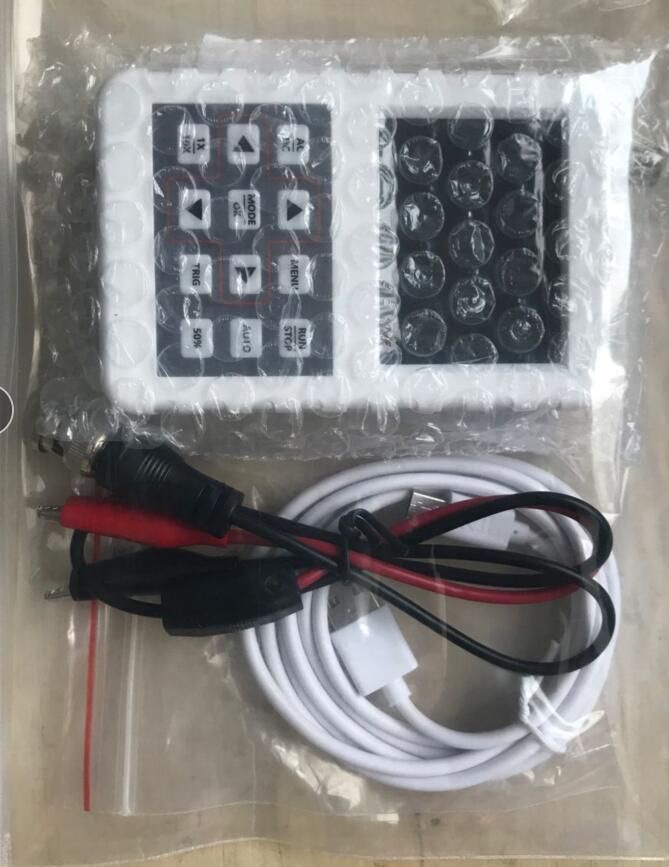

产品实物配件展示
包装 配件

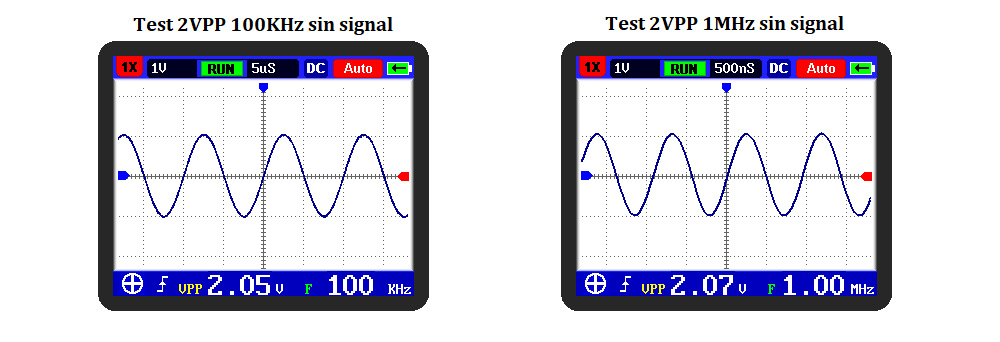

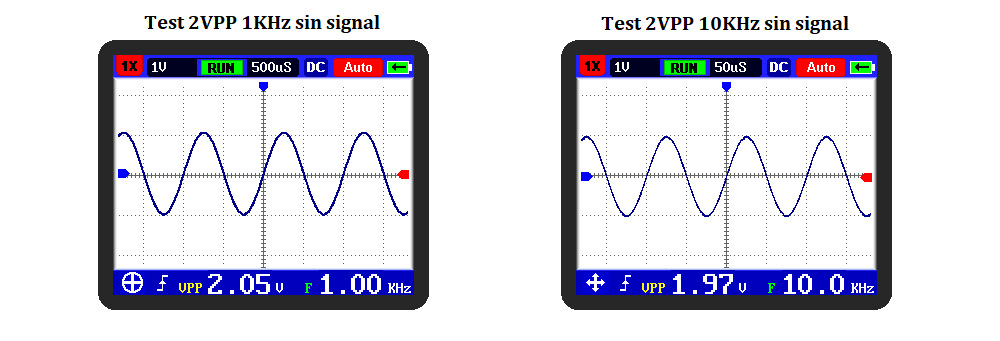

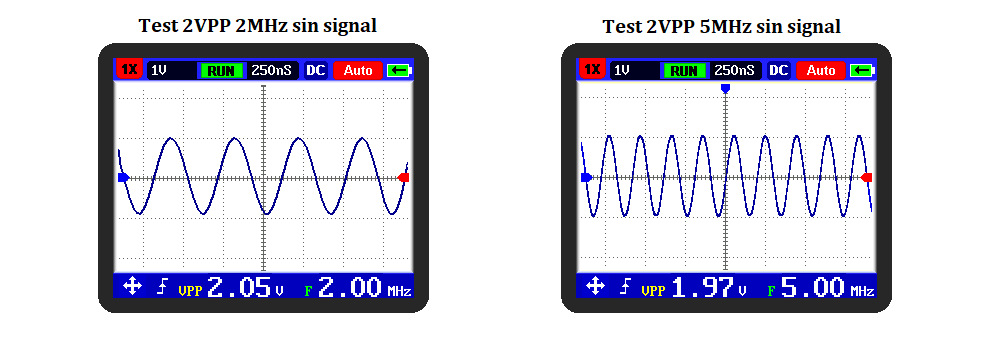

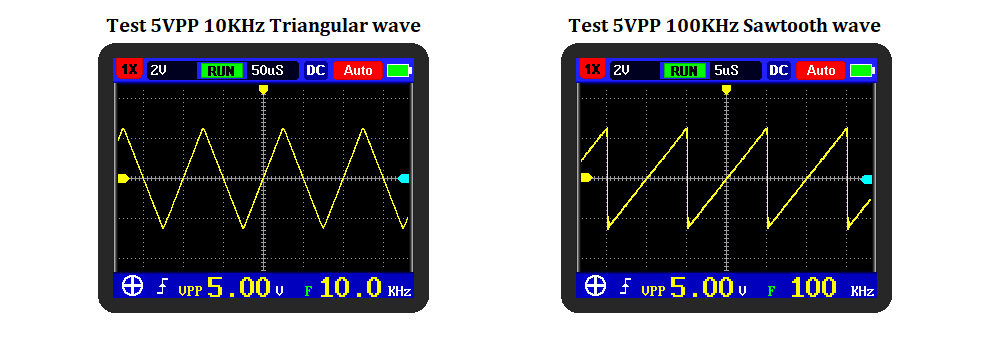

测试 实例：
外贸英文版，带英文纸质说明书，重量199g

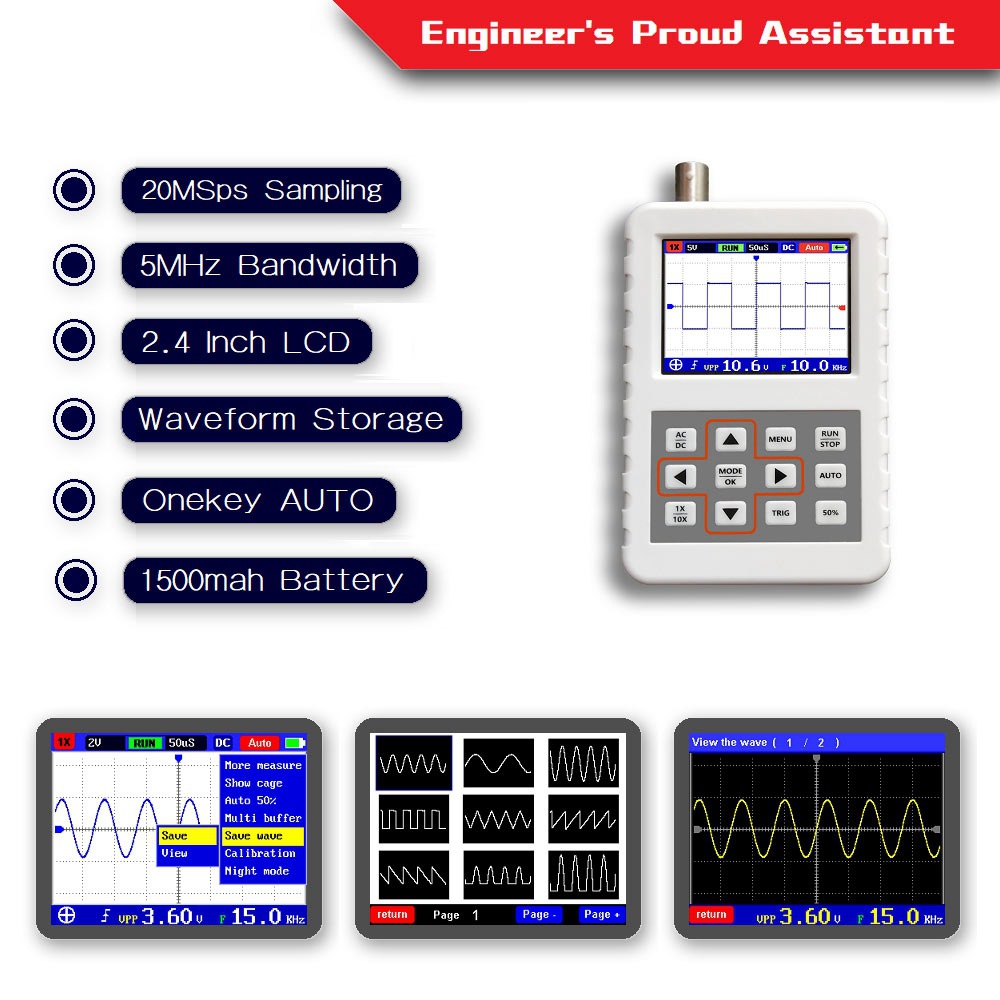

Features and specifications:
DSO FNIRSI PRO is a full function, high utility, high performance and cost-effective handheld oscilloscope for the maintenance industry and the R & D industry. The oscilloscope has a real-time sampling rate of up to 20MS/s and a 5MHz analog bandwidth. With complete triggering function (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely. Large time base scanning mode can monitor slow level changes. Equipped with high efficiency one button AUTO, the measured waveform can be displayed without complicated adjustment. Display the High Definition LCD screen equipped with 2.4 inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 16MB storage space, the maximum storage of 500 waveform pictures. Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions. Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time. Day mode and night mode can be changed according to their own preferences.
Key features:
1：Memory compression technology, waveform refresh screen does not flicker
2：Afterglow display technology
3：2.4 inch color display screen
4：5MHz analog bandwidth @ 20MS/s sampling rate
5：Fast waveform storage
6：Built-in 16M storage space, the maximum storage of 500 waveform pictures
7：Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
8：High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V
9：Up to 11 parameters measurement：VPP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Time
10：At any time, the waveform display (pause function) is frozen
11：Equipped with high efficiency one button AUTO
12：Complete triggering function (single, normal, automatic)
13：Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time
14：Day mode and night mode
15：Ultra small volume, easy to carry
Specifications:
1：Analog band width: 5MHz
2：Maximum real time sampling rate: 20MS/s
3：Vertical sensitivity: 50 mV/div ~ 200 V/div
4：Horizontal time base range: 50S/div ~ 250nS/div
5：Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
6：Storage depth: 40KB
7：Input resistance: 1M
8：ADC precision: 8bits
9：Coupling mode: AC/DC
10：Trigger mode: Single, Normal, Automatic
11：Trigger edge: Ascending/descending edge
12：External trigger voltage 0 – 40 V
13：Display: 2.4 inch @ 320 * 240
14：Power supply: 1200 mAh lithium battery
15：Size: 107 x 70 x 24mm
16：Weight: 150g

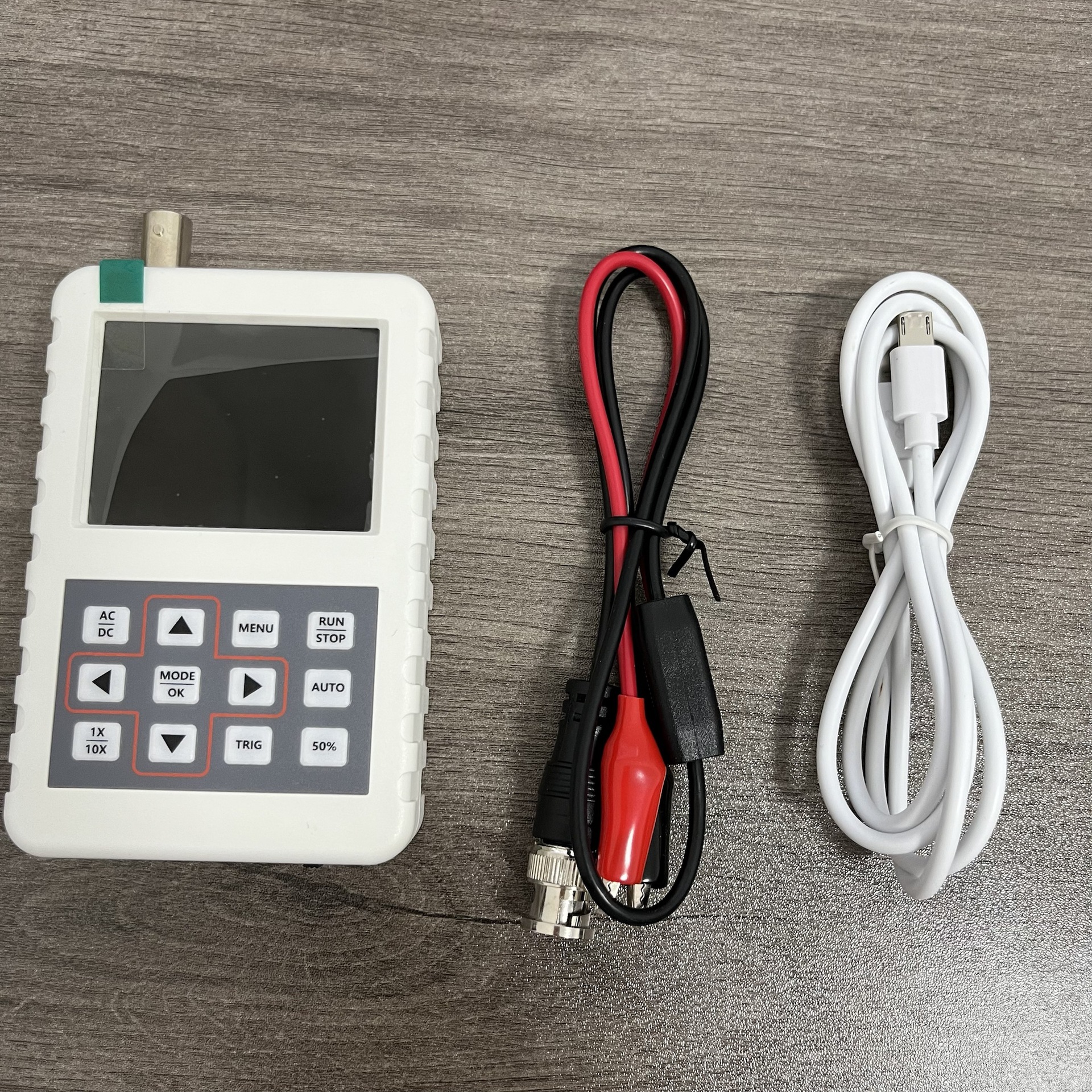

Package includes:
1 x DSO FNIRSI PRO oscilloscope host 示波器主机
1 x Crocodile clip probe 探头
1 x Micro USB data line 充电线
1 x User manual (English) 英文说明书
购买本店产品请具备一定的电子基础知识，本店所有产品除了提供部分资料文件外不提供技术支持。
诚信经营，给您提供可靠质量的产品。
