443 металлический четырехключевой электрический ключ от двери гаража трансграничная охранная сигнализация Контроль доступа пара копия беспроводной пульт дистанционного управления

新快速拷贝型遥控器产品说明

New fast copy type remote control product description

1、可以对拷的芯片：

     2260（所有厂商）、2262（所有厂商）、PT2264、5326（所有厂商）、SC5262、HT600、HT680、HT6207、HT6010、HT6012、HT6014、SMC918系列、527（所有厂商）、1527（所有厂商）、2240（所有厂商）、HCS101、HCS200\HCS201(部分代码）、HCS300\HCS301(部分代码）、部分单片机..........

1.Chips could be copied

2260(all manufacturers);2262(All manufacturers);PT2264, 5326(All manufacturers);SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918series,527(All manufacturers);1527(All manufacturers);2240(All manufacturers);HCS101, HCS200\HCS201(part code),HCS300\HCS301(部分代码), part single chip microcomputer..........

2、清码方法：

 同时按住开锁与关锁两键（有些外壳是上行与下行两键），LED指示灯闪烁三下，松开按下去的任意一个按键，另一个不松，点击松开的按键三下，LED指示灯进入快速闪烁状态，此时内存的数据全部清除，清完数据之后的遥控器，无论按哪个按键，LED指示灯都是不亮。

2.Code cleaning method:

Press the unlock button and lock button at the same time(some shells are the up button and down button), after the LED indicator light flashes three times, loosen any one of the buttons while the other is kept pressing, then push the released button three times, the LED indicator will enter into the fast flashing status. At this time all the memory data is cleared, the cleaned remote control will not have lighting LED indicator no matter which button you press.

3、对拷方法：

    一手持原配遥控器，另一手持对拷遥控器，两只遥控器尽量靠近，(理想的是将两个遥控器零距离边靠着边放在桌面上)分别按下所需对拷的按键，LED指示灯快速闪烁三下之后快速闪烁，对拷成功，其他按键操作方法相同。有些遥控器发射功率较小，应原配遥控器与对拷遥控器背靠背操作，才好对拷。有些操作环境有干扰的，应避开干扰操作，如果对拷不太好使的，清码以后重新对拷。（特别重要：您手上的遥控器必须能正常工作且与我们的遥控器频率相同。

3. Copy method

One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the ideal situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same. Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code.（ Attention：Your original remote control must be able to work and the same as our remote control frequency）

4、新款对拷遥控器特点：

    四个按键分别可以对拷四种不同类型的芯片，也就是一个遥控器可以操作四种不同类型的设施。。对拷数据速度较快，不容易丢码，距离远。

4. The features of new copy remote control

The four buttons could respectively copy four different types of chips, That is a remote control can operate four different types of facilities. The frequency is from 270MHz to 434MHZ and more than ten frequency points. Faster copy data speed, not easy losing code, far distance.

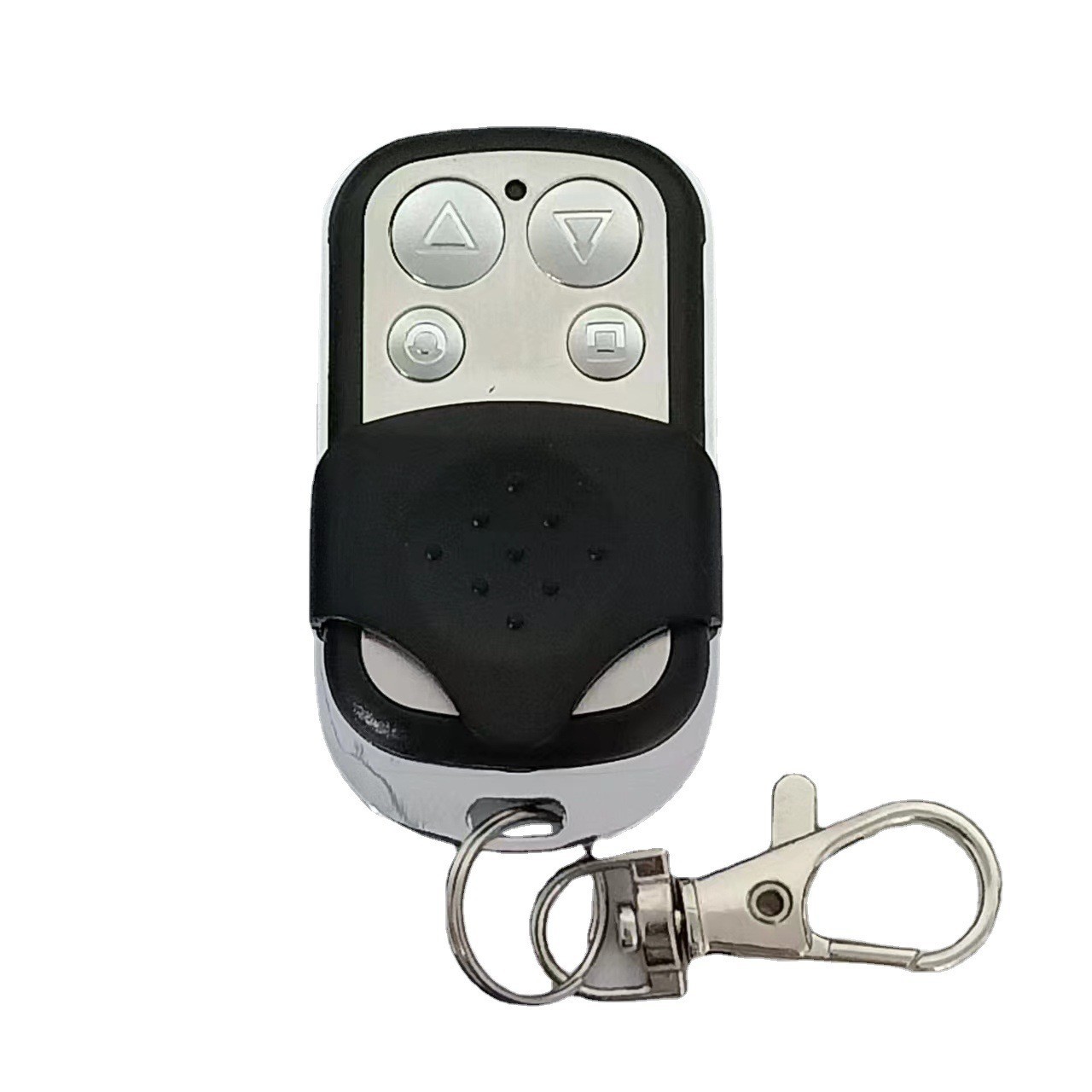

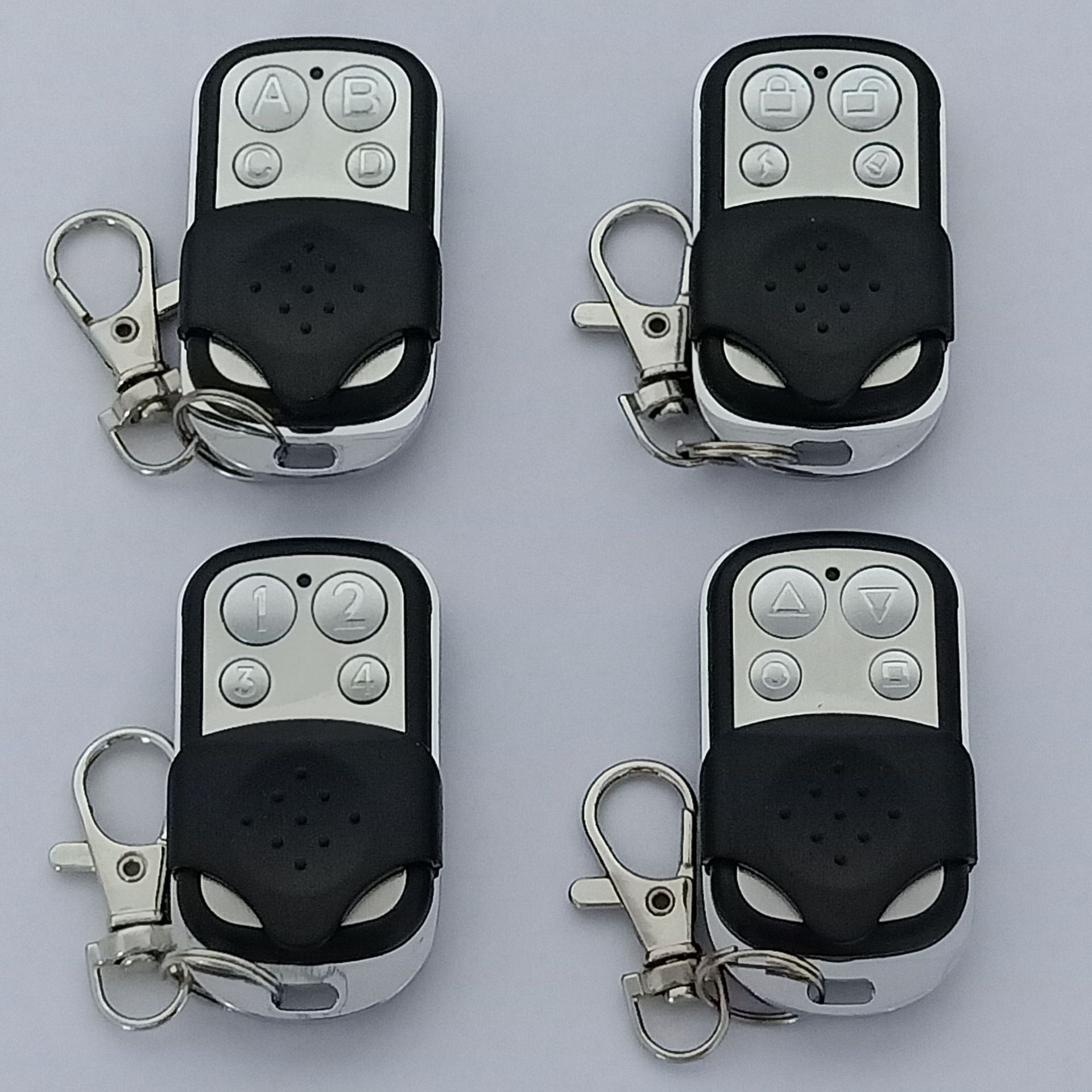

 实物图：
