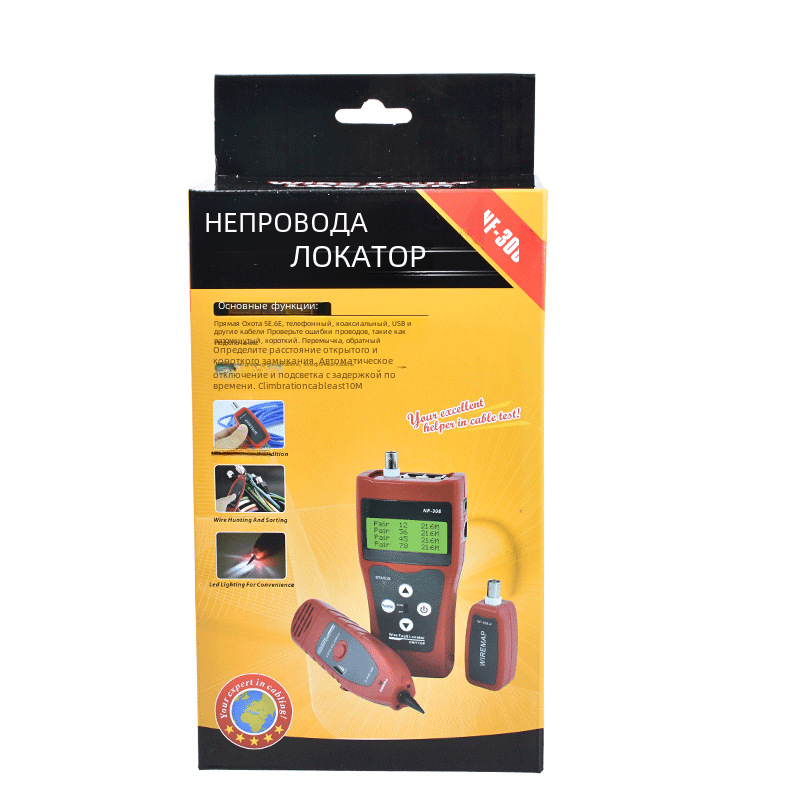

NOYAFA NF-308S Английская версия Line Finder Тестер длины сетевого кабеля
Price section
dan boshlab
1 123 793 so'm
Технические характеристики
NF-308S Английская версия [с аккумулятором]
NF-308S Английская версия [без аккумулятора]
Kafolatlangan yetkazib berish muddati
Agar biz 45 kun kechiksak, buyurtmani bepul olasiz. Batafsil
Har doim siz bilan aloqada
Biz har kuni savollarga har qanday savollarga javob beramiz.
To'lovni qulay usulda xavfsiz qiling
Biz to'lovlarni turli xil usullarda qabul qilamiz.
Bo'lib to'lash mavjud
Mahsulot haqida
Xususiyatlar
- Бренд
NOYAFA
- модель
NF-308S
- Импортировано ли оно?
Нет
- Обработка и настройка
Нет
Tavsif
Place of Origin : Shenzhen.China
Port : RJ45, RJ11, BNC, USB
Test length : RJ45
Wiremap Type: RJ45, BNC Cable
Tracking Type : RJ45, RJ11, BNC ,USB and Metal Cable
Other Function : Portflash function
Power : 9V Alkaline battery
注：该链接是英文版的308S寻线仪 单价是1套的价格。该产品是308的升级版 升级了耐压poe性能。
The website is an English version of the 308S line finder, with a unit price of 1 set. This product is an upgraded version of 308, which has upgraded its withstand voltage PoE performance
Features:
1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Locate the wiring or connection error.
4. Measure cable length and determine the distance of breakage point.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.
Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Technical indexes:
| NF-308 Transmitter specifications | |
| Indictor | LCD 53x25 mm, with back light |
| Tone frequency | 225 Hz |
| Max. distance of transmission | 2 km |
| Max. distance of cable map | 300m |
| Max. working current | Less than 70mA |
| Tone mode | 2 Tone adjustable |
| Compatible connectors | RJ11，RJ45,Coacial, USB |
| Max. signal voltage | 15Vp-p |
| Function selection | 3 position buttons & 1 power switch |
| Function and faults LCD display | LCD display ( wiremap, Tone, short, , No adapter, Low battery ) |
| Cable map indication | LCD (#1-#8) |
| Shielded indication | LCD ( #9) |
| Voltage protection | AC 60V/DC 42V |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V x 1pcs） |
| Dimension(LxWxD) | 185x80x32mm |
| NF-308 Receiver specifications | |
| Frequency | 225kHz |
| The Max. working current | Less than 70mA |
| Earjack | 1 |
| LED illumination | 2 |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V) x1pc |
| Dimension(LxWxD) | 218x46x29 mm |
| NF-308 Remote unit specifications | |
| Compatible connectors | RJ11，RJ45,Coacial, USB |
| Dimension(LxWxD) | 107x30x24mm |
Function Comparison:
| Function | NF-308 | ||||
| Find Cables | RJ45+RJ11+BNC USB |
||||
| Address Cables | RJ45+BNC | ||||
| Test Length | RJ45 | ||||
| Test cross cables | |
RJ45+BNC | |||
| Test short-circuit | |
|
RJ45+BNC | ||
| Test crosstalk | |
|
RJ45+BNC | ||
| Lighting | |
|
√ | |
|
| Earphone | |
|
√ | |
|
| Anti-jamming | |
|
√ | |
|
| Voltage Withstand | |
|
√ | |
|
| Tone | 2 types |
Accessories Included:
* Earphone x 1 set
* Battery x 2 sets
* Telephone line adapter x 1 set
* Network cable adapter x 1 set
* Coax cable adapter x 1 set
* Cable clips x 1 set
