USB 2.0 Digital DAB DVB-T SDR Dongle T2/C/FM-конвертер

注意：本店标价都不含税，开票需要另外添加税点，详情请联系客服沟通，谢谢

 第一款  蓝色 DVB-T+FM+DAB 820T

These units are based on the R820T tuner IC made by Rafael Micro. As such, they have a frequency capability of approximately 25MHz-1750MHz, though this can vary somewhat from unit to unit. There is also an RTL2832U IC on board of course, which acts as the demodulator and USB interface.

The connector type on the antenna and USB board is MCX--male MCX on the antenna, female MCX on the SDR.

第二款 蓝色 DVB-T+FM+DAB R860

第三款 蓝色 DVB-T+FM+DAB R828D

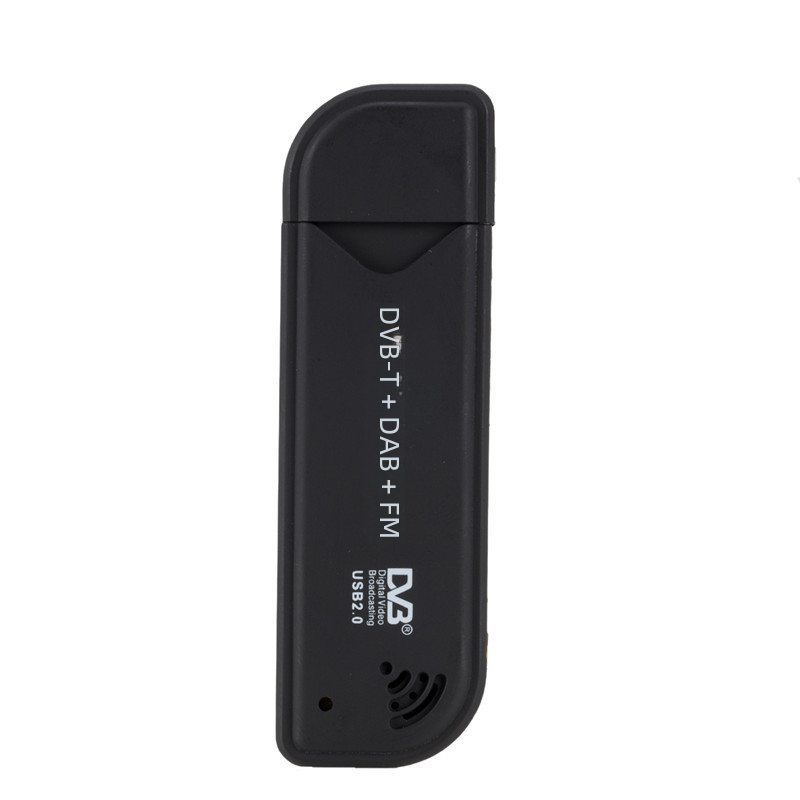

第四款  黑色 DVB-T+FM+DAB 0012

Features:
Watch and record digital terrestrial TV on PC or Laptop
Watch DVB-T digital TV and listen to DAB+ digital +FM + radio
DVB-T bandwidth reception (6/7/8 MHz)
Still image snapshots
Time-shifting
Scheduled recording
Digital TV recording and playback as DVD quality
Support multi-picture display
Support EPG (Electronic Program Guide)
Support Teletext
Support Microsoft BDA drivers
Remote control
Support Windows 2000/XP/Vista/WIN7/8
Support both MPEG-2, MPEG-4(H.264) encoding
Specifications:
USB2.0 Interface
Terrestrial Antenna Input
Dimensions: 90mm*32mm*12mm
Weight: 32g
System Requirements:
CPU: Pentium IV 1.8 GHz or above
Operation System: Windows2000 ,xp/vista/w7/8
DirectX9.0c or above
500M of available hard disk space or above
CD-ROM Drive

 第五款 绿色 DVB-T SDR RTL2832SDR五金壳

第六款 蓝色 DVB-T+FM+DAM+SDR

This is an RTL-SDR software defined radio receiver with RTL2832U ADC chip, R820T2 tuner, 1PPM TCXO, SMA F connector and aluminium case with passive cooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz of instantaneous bandwidth (2.4 MHz max stable, 3.2 MHz if your application is tolerant to USB drops). (HF works in direct sampling mode - V.3 models and above only). for use as a computer based radio scanner with free software like SDR#, HDSDR, SDR-Radio, Linrad, GQRX or SDR Touch on Android. Works on Windows, MacOS, Linux, Android

第七款 白色 DVB-T/T2/C+FM+DAB

Supported TV standards:
DVB-T2, DVB-T, DVB-C

VHF-/UHF band

Stereo / dual channel sound
Antenna input: IEC connector
PC-interface: USB 2.0 (Hi-Speed)
TV recording formats

MPEG-2 transport stream
MPEG-4 H.264 (AVC)
System Requirement

Microsoft, Windows 7, or Windows Vista with Service Pack, 1 GB RAM
Or Windows XP (32 bit) with latest Service Pack, 512 MB RAM
Intel Pentium 4 2.0 GHz, Pentium M 1.3 GHz or equivalent AMD Athlon XP
For HDTV: 2 GHz processor
Hard disk with min. 300MB free capacity (1 GB free capacity recommended)
Sound and graphics with support for DirectX 9 or higher
USB 2.0 port
CD/DVD drive for software installation
Recommended: Internet connection for software updates and activations

第八款 白色 DVB-T

第九款  白色 DVB-T-T2-C+FM+AV双用数字模拟一体

Supported TV standards:
DVB-T2, DVB-T, DVB-C, Analog TV, AV, FM

VHF-/UHF band

Stereo / dual channel sound
Antenna input: IEC connector
PC-interface: USB 2.0 (Hi-Speed)
TV recording formats

MPEG-2 transport stream
MPEG-4 H.264 (AVC)
Analog TV PAL-BG/DK/I, SECAM, NTSC
System Requirement

Microsoft, Windows 8, or Windows Vista with latest Service Pack, 1 GB RAM
Or Windows XP (32 bit) with latest Service Pack, 512 MB RAM
Intel Pentium 4 2.0 GHz, Pentium M 1.3 GHz or equivalent AMD Athlon XP
For HDTV: 2 GHz processor
Hard disk with min. 300MB free capacity (1 GB free capacity recommended)
Sound and graphics with support for DirectX 9 or higher
USB 2.0 port
CD/DVD drive for software installation
Recommended: Internet connection for software updates and activations
CD with application, drivers and user manual
