M162 Высокоточный тестер LCR менее 1 евро сопротивление 15pF конденсатор 10 микро Heng индуктивность Быстрое измерение ЖК-дисплей
Mahsulot haqida
Xususiyatlar
- Происхождение
Китай
- Тип
Интеллектуальный измерительный прибор LCR
- Модель
M162 (комплект)
- Импорт или нет
Нет
- Точность измерения
1
- Индивидуальная обработка
Нет
Tavsif
M162 LCR表是普通万用表的理想搭档，多数万用表欠缺对电容、电感和1欧姆以下小电阻的测量能力，而M162 LCR表正好弥补了这个缺陷。
M162有成品和套件2个版本，套件版的M162制作非常容易，不需要特别校准就可以达到大约1%的精度。
2.4'' 液晶显示屏。
产品重量：100克（含包装，不含外壳）
产品尺寸：105*65*15mm，
含外壳产品尺寸：111*76*25 mm (4.37"*3.0"*1.0")，
包装尺寸：115*95*27mm
发货清单：M162 套件
****************************************************

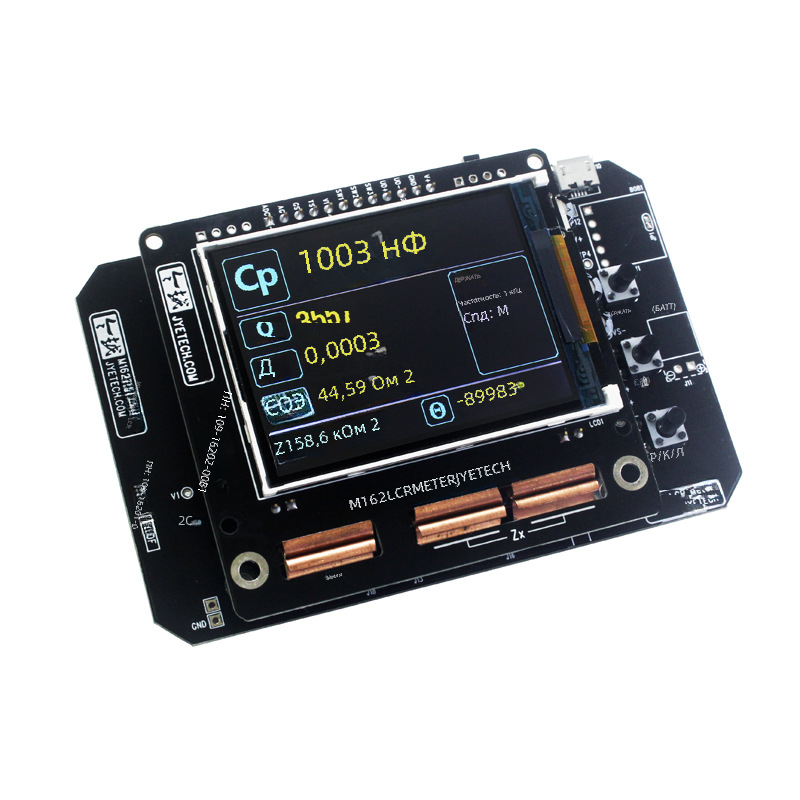

M162 LCR meter is a great complimentary tool to most multi-meters. Regular multi-meters are good in many way. But they usually have rather limited or even no ability for capacitance, inductance, and sub-ohm resistance measurement. The addition of a M162 LCR meter will overcome this deficiency. The DIY kit version of M162 is very easy to build. No special calibration is required to achieve ~1% accuracy.
Highlights of M162 LCR Meter:
Resistance range: 0.1ohm — 20M ohm
Capacitance range: 1pF — 20mF
Inductance range: 1uH — 20KH
Fully automatic ranging
Accuracy: about 1%
Built-in virtual USB comport for data output and firmware upgrade
Serial data output via USB comport or direct LVTTL
Display HOLD function
USB/Battery powered
Easy to build, easy to use
Optional acrylic enclosure (sold separately)
Specifications
Display
- Primary: R, C, L
- Secondary: Q, D, ESR
- Equivalent Circuit Mode: Parallel or Serial
- Primitive Data: |Z| and Θ, or Rs and Xs
Measurement Range and Accuracy
- R, |Z|: 0.1Ω - 20MΩ
- C: 1pF - 20000μF
- L: 1μH - 20000H
- Q, D: 0 - 10000
- Θ: -90° - 90°
- Accuracy: About 1% (tested for resistance 1Ω - 1MΩ)
Measurement Conditions
- Test Frequency: 100Hz, 1KHz
- Open Voltage: 0.5Vpp
Miscellaneous
- Measurement Connections: 4 Kelvin wires on the test terminals
- Ranging: Fully automatic
- Compensations: Open, Short
- Serial Data Output: Yes
- Power Supply: USB or battery
- Power Consumption: < 100mA @ 5V
- Product size：105*65*15mm
- Including housing dimensions: 111 x 76 x 25 mm (4.37" x 3.0" x 1.0")
- Package size：115*95*27mm（Kit, without housing）
- Weight: 100g
