Fnirsi Sg-003a Многофункциональный генератор сигналов 4-20 мА, аналоговый калибратор напряжения и тока
Price section
dan boshlab
1 316 577 so'm
Модель
SG-003A Вилка европейского стандарта
SG-003A Вилка американского стандарта
Kafolatlangan yetkazib berish muddati
Agar biz 45 kun kechiksak, buyurtmani bepul olasiz. Batafsil
Har doim siz bilan aloqada
Biz har kuni savollarga har qanday savollarga javob beramiz.
To'lovni qulay usulda xavfsiz qiling
Biz to'lovlarni turli xil usullarda qabul qilamiz.
Bo'lib to'lash mavjud
Mahsulot haqida
Xususiyatlar
- Происхождение
Шэньчжэнь
- Пункт Нет.
SG-003
- Тип
Генератор функциональных сигналов
- Марка
ФНИРСИ
- Импорт или нет
Нет
- Индивидуальная обработка
Да
- Номер заказа
SG-003
- Иметь авторизованные частные бренды
Да
Tavsif
提供英文描述，请把网页往下拉,可询问客服英文 主图 详情介绍资料包
产品带包装重量：473.9克
包装尺寸：15.3x14.5x8.5cm
速卖通限价：不低于52.99美金
亚马逊限价：
产品实物包装配件图
包装 配件图
FNIRSI SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Signal Generator Sources transmitter calibrator Transmitte
Features :
1. Expect with the conventional signal input and output functions
2. Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle.
3. With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode.
4. The output has a custom function,the upper and lower output limits can be set arbitrarily.
6. Voltage input diagram,current input diagram,the frame rate is 10 frames.
7. PWM output can set frequency and duty cycle respectively.
8. Real-time curve:Real-time observation of changes in voltage and current
9. It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA,Super long working hours

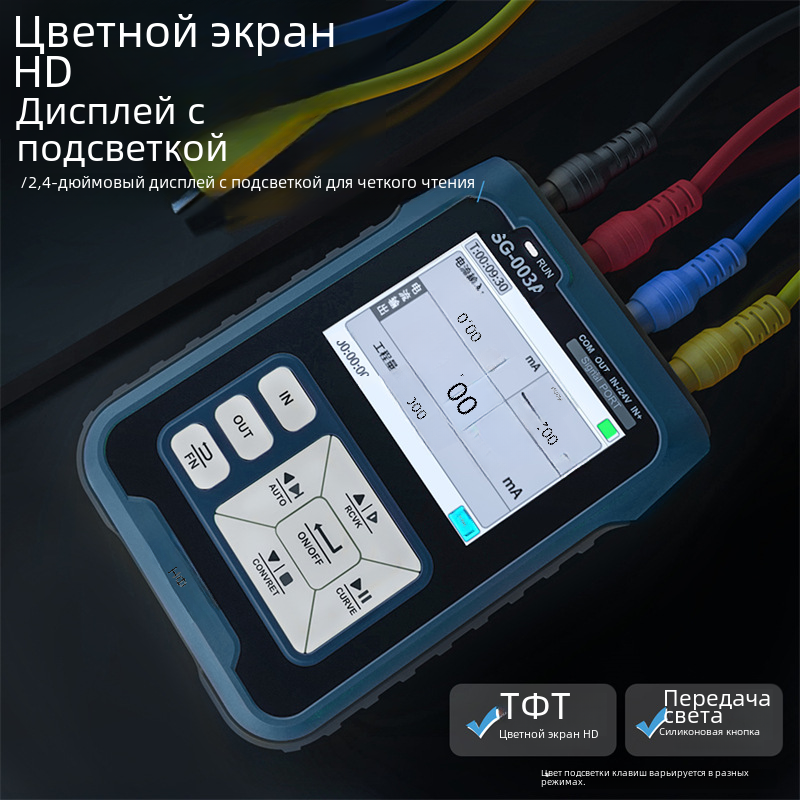

10. The high-definition TFT color LCD screen makes the reading more eye-catching.The resolution is 240*320.Low power consumption,Maximum power consumption: 0.32W
Technical Parameters:
1. Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750Ω;Precision:±(0.1%+0.005)
2. Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)
3. Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)
4. 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)
5. Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100Ω;Precision:±(0.1%+0.05)
6. Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2MΩ;Precision:±(0.1%+0.05)
7. PWM output (frequency):Range: 0-9999Hz
8. A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours;the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
9. Operating environment: 0 °C - 50 °C.
10. Internal reverse and overcurrent protection; protection voltage:30V
11. Output automatically
12. Size: 92mm*72mm*30mm
13. Weight:165g
Package include:
1*FNIRSI SG-003A Multifunctional Signal Generator Calibrator
4*Test Clip
1*Type-C Charging Cable
1*EU Charger
主图
SKU
详情
本公司默认快递：申通快递、优速快递，如需发其他快递（圆通、韵达）顺丰请联系客服。
本公司产品常年现货，可以直接下单。
