TES-1151 цифровой измеритель уровня звука, тестер уровня шума, измеритель шума, диапазон от 30 до 130 дБ
Price section
dan boshlab
10 720 697 so'm
Kafolatlangan yetkazib berish muddati
Agar biz 45 kun kechiksak, buyurtmani bepul olasiz. Batafsil
Har doim siz bilan aloqada
Biz har kuni savollarga har qanday savollarga javob beramiz.
To'lovni qulay usulda xavfsiz qiling
Biz to'lovlarni turli xil usullarda qabul qilamiz.
Bo'lib to'lash mavjud
Mahsulot haqida
Xususiyatlar
- Происхождение
Тайвань, Китай
- Рабочая температура
-20-60
- Номер товара
ТЭ-1151
- тип
Цифровой шумомер
- модель
ТЭ-1151
- Импортировано ли оно?
Нет
- Диапазон измерения
от 30 до 130 дБ
- Обработка и настройка
Нет
- Номер заказа
ТЭ-1151
Tavsif

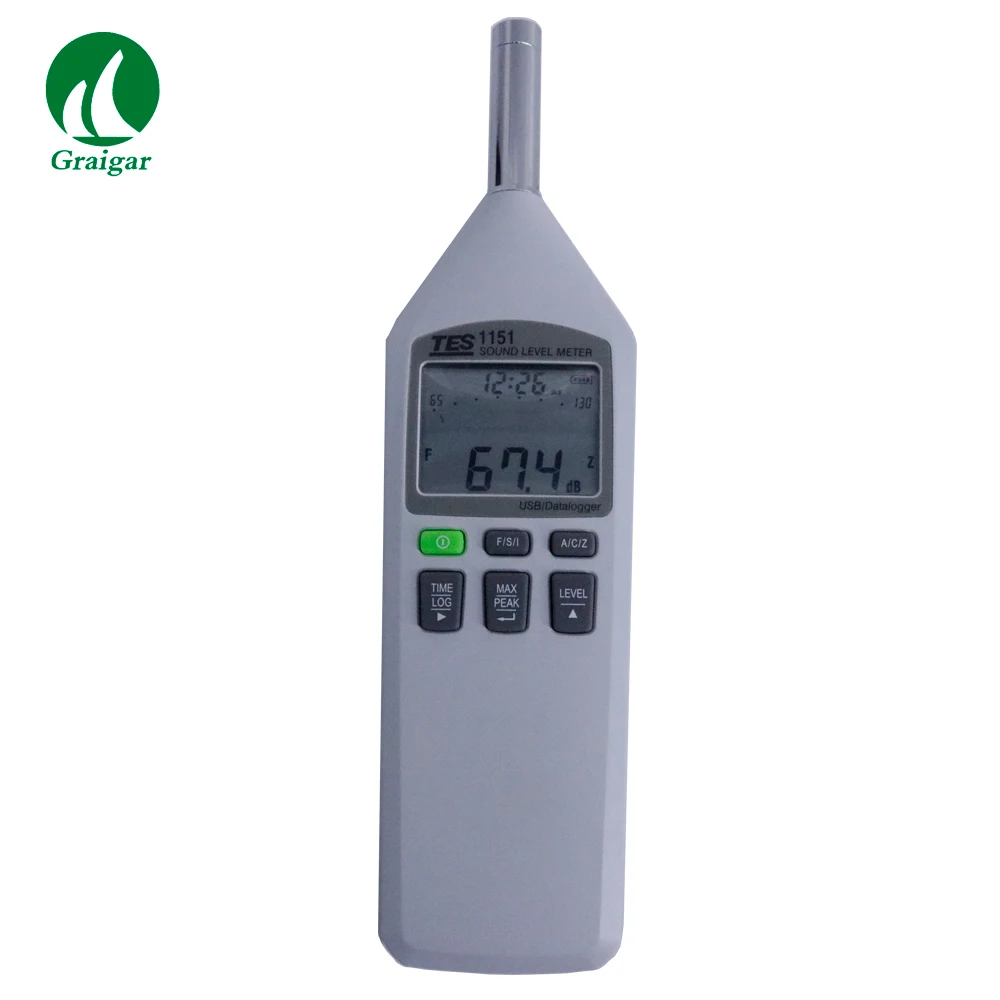

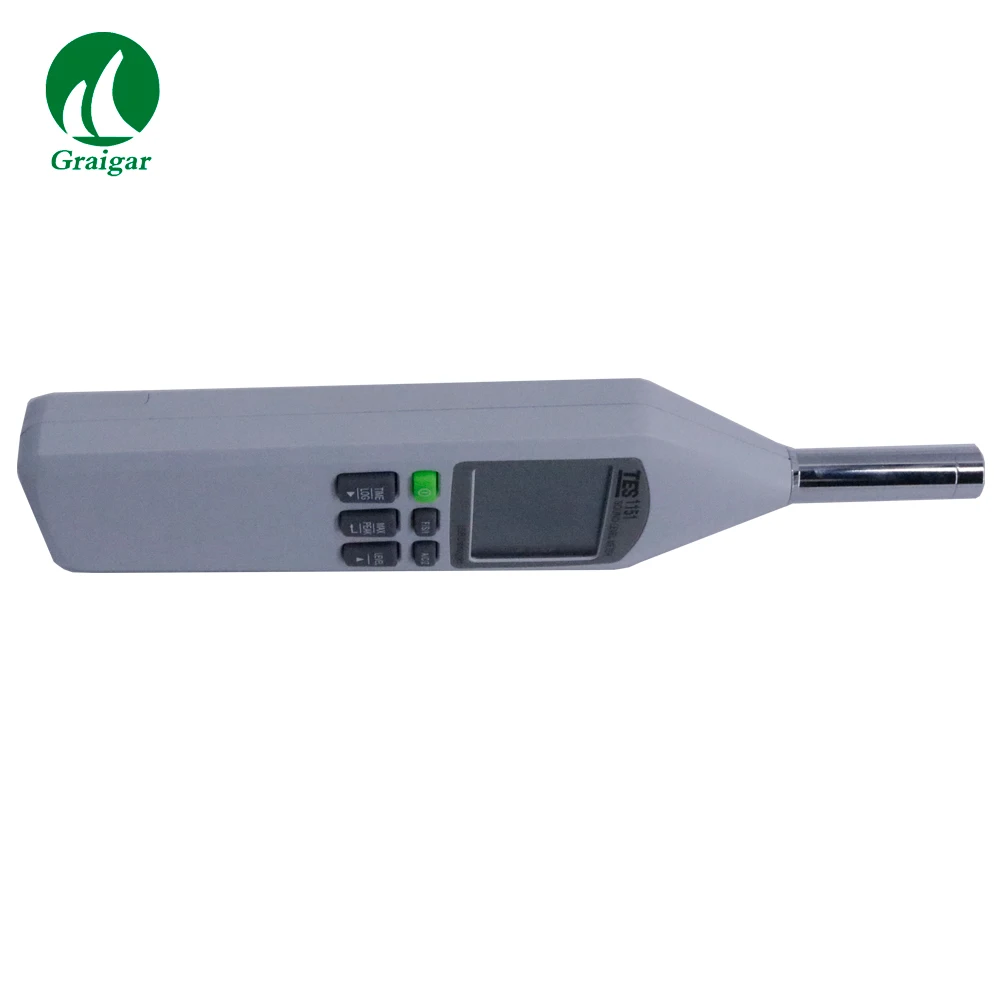

TES-1151 Digital Sound Level Meter Noise Level Tester Noise Meter Range 30 to 130dB
Product Features
0.1dB resolution.
Range from 30 to 130dB.
Maximum hold function.
A,C, Z frequency weightings.
A, C, Z peak hold function.
Fast, Slow and Impulse dynamic
characteristic models.
AC/DC output jack.

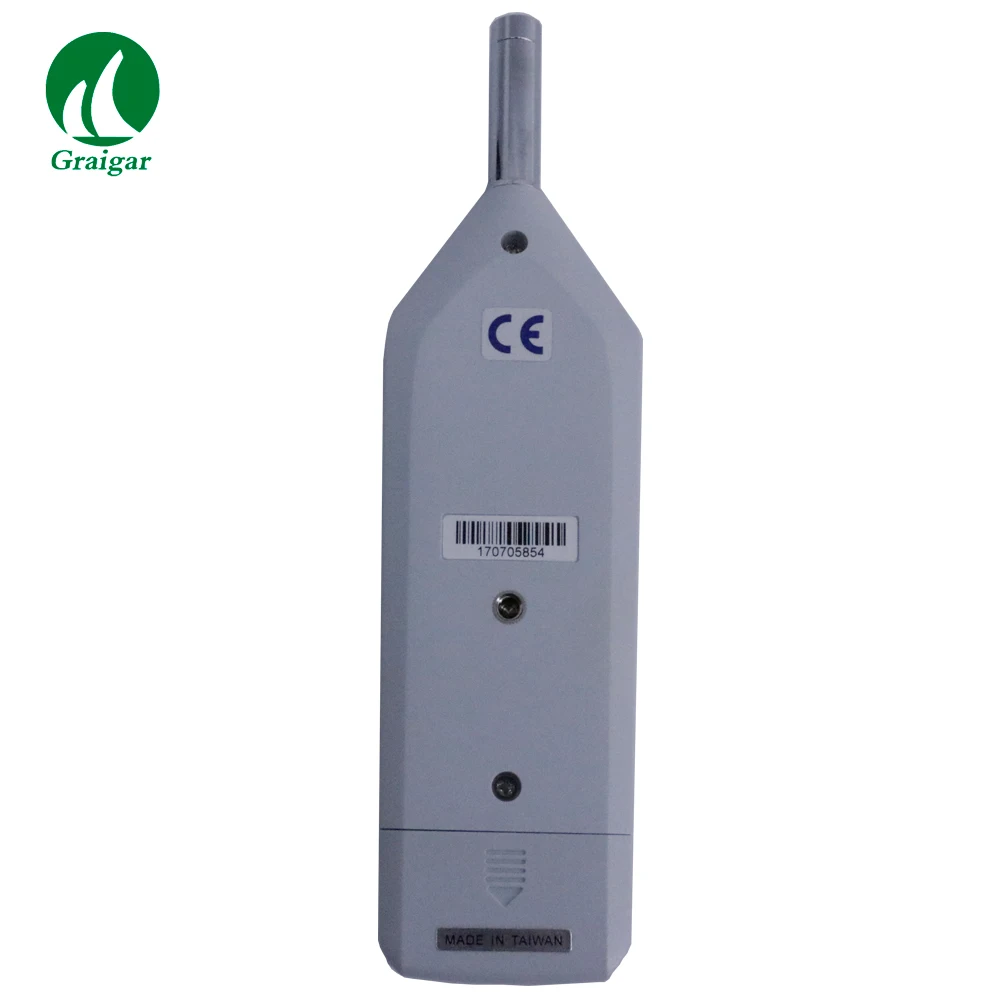

Back-screw for tripod fixture.
Micro-USB (1151)
Auto data memory microSD CARD 4GB.(1151)
specification
|
Applicable Standards |
IEC 61672-1: 2013 Class 2, ANSIS1.4: 1983 Type 2 |
|
|

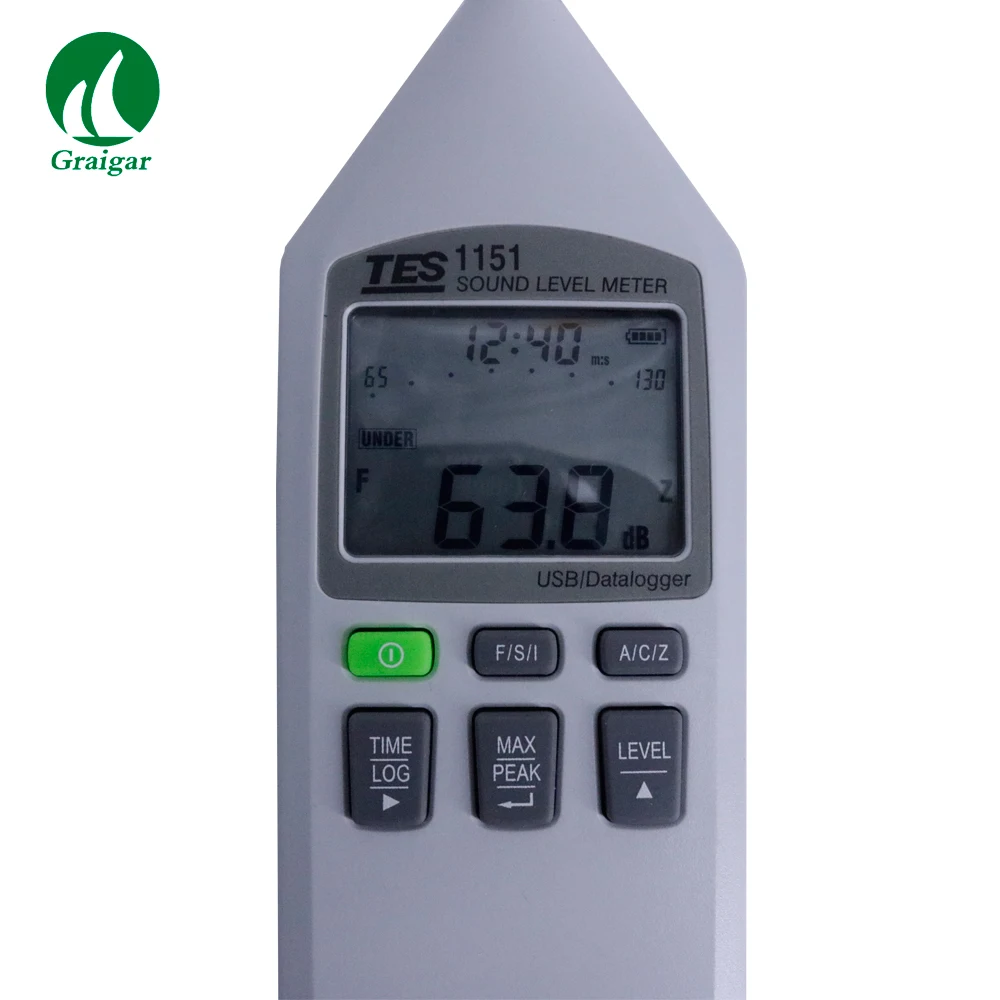

Digital Display |
4 digital LCD |
|
|
Measurement Level Range |
30 to 90dB, 45 to 110dB, 65 to 130 dB |
|
|
PEAK LevelRange |
65 to 93 4dB, 85 to 113 4dB, 105 to 133.4 dB (1150) 65 to 93dB, 85 to 113dB, 105 to 133 dB (1151) |
|
|
Resolution |
0.1dB |
|
|
Typical Instrument Frequency Range |
31. 5Hz to 8kHz |
|
|
Accuracy |
+1.0dB (ref 94dB @1kHz) |
|
|
Dynamic Range |
65dB |
|
|
Frequency Weighting |
A,C and Z |
|
|
Time Weighting |
F (Fast), S (Slow), and I (lmpulse) |
|
|
Microphone |
1/2 inch Electret condenser microphone |
|
|
Analog output |
AC output |
1.0Vms corresponding to each range step, lmpedance= 5kQ |
|
DC output |
10mV/dB (nominll), Impedance: =5kQ |
|
|
Auto data memory |
microSD CARD 4GB (1151) |
|
|
Operating Temperature & Humidity |
-10°Cto +50°C, 30% to 90%RH non-condensing |
|
|
Storage Temperature & Humidity |
-10°C to +60°C, <70%RH non-condensing |
|
|
Power Supply |
One 006P 9V or IEC 6F22 or NEDA 1604 Battery |
|
|
Battery Life |
Approx. 24 hours |
|
|
Dimensions |
246(L )x64(W)x26(H)mm |
|
|
Weight |
Approx. 180g |
|
|

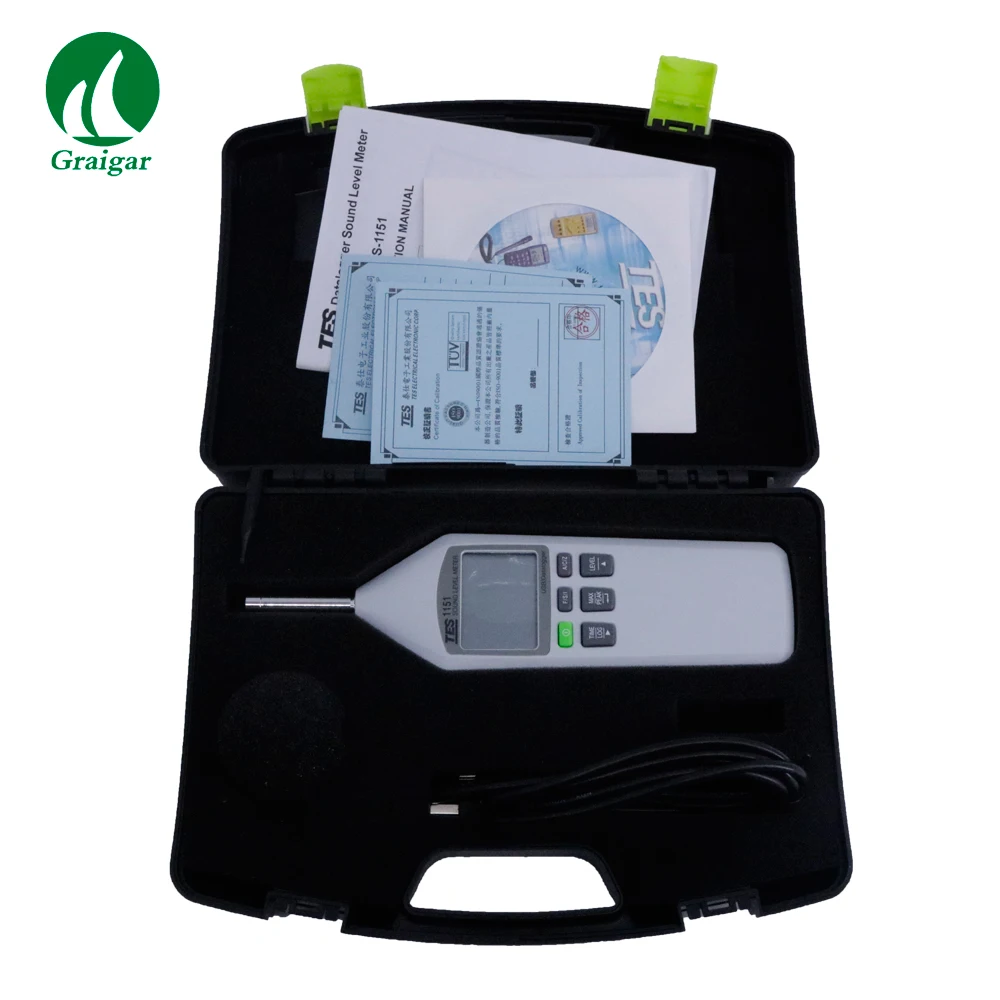

Accessories |

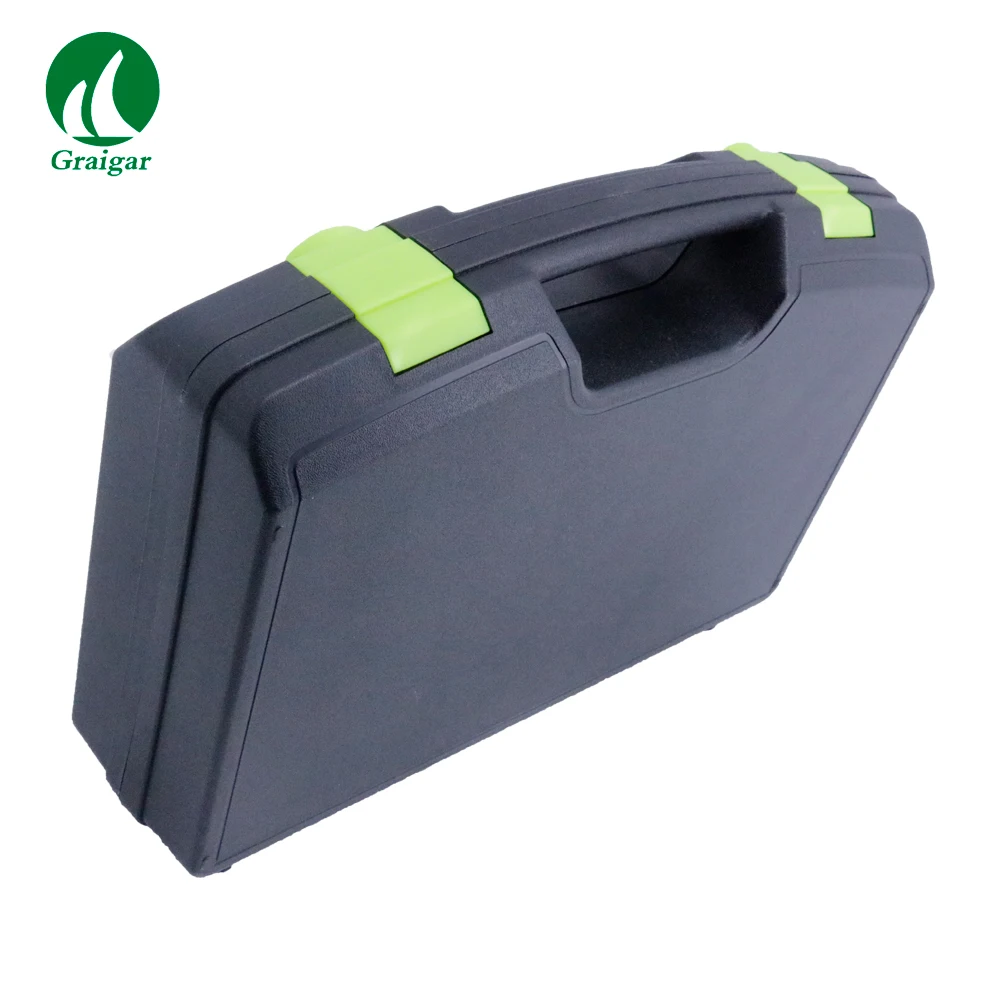

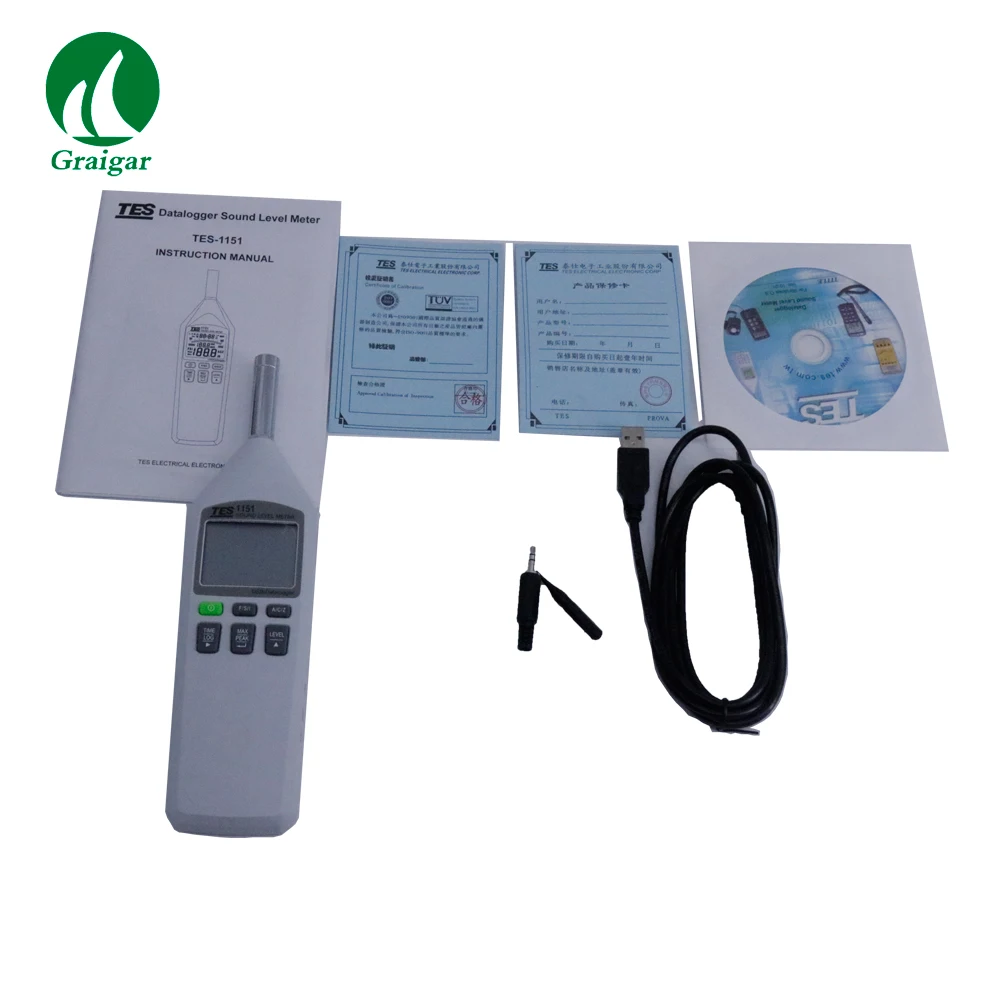

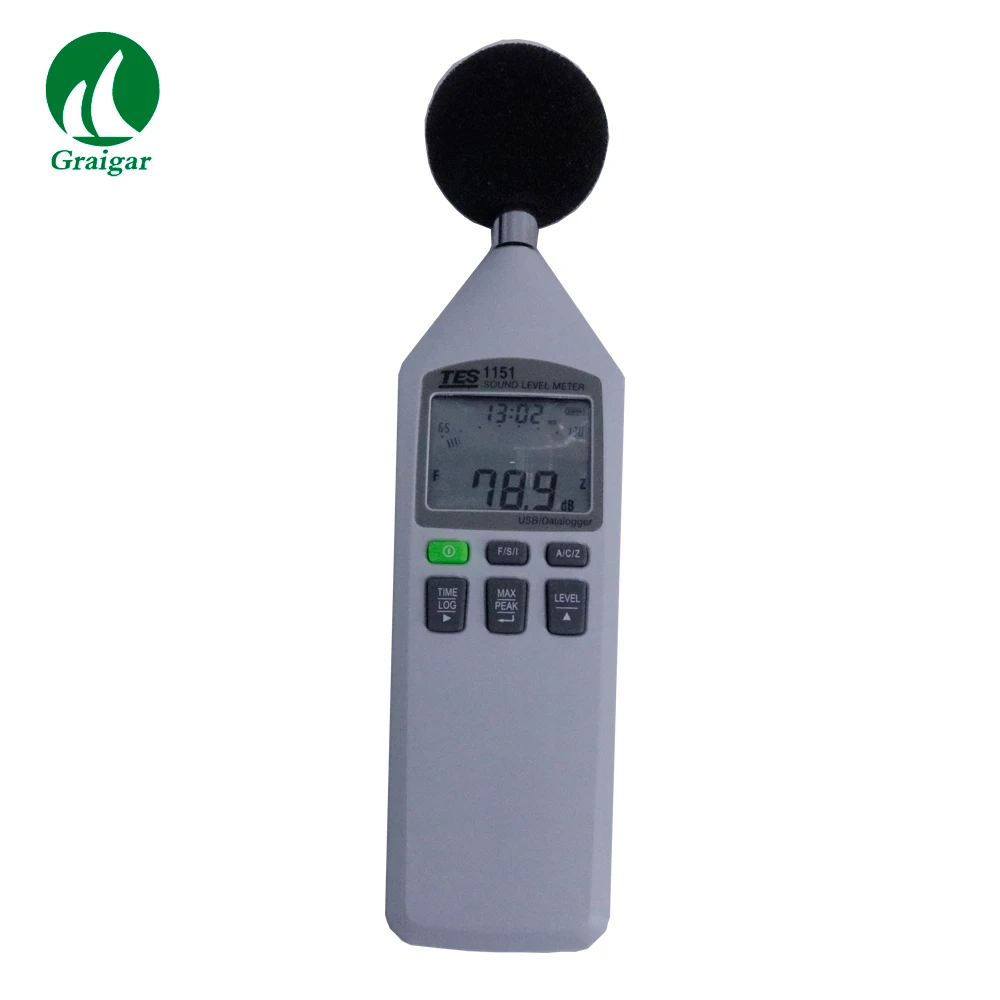

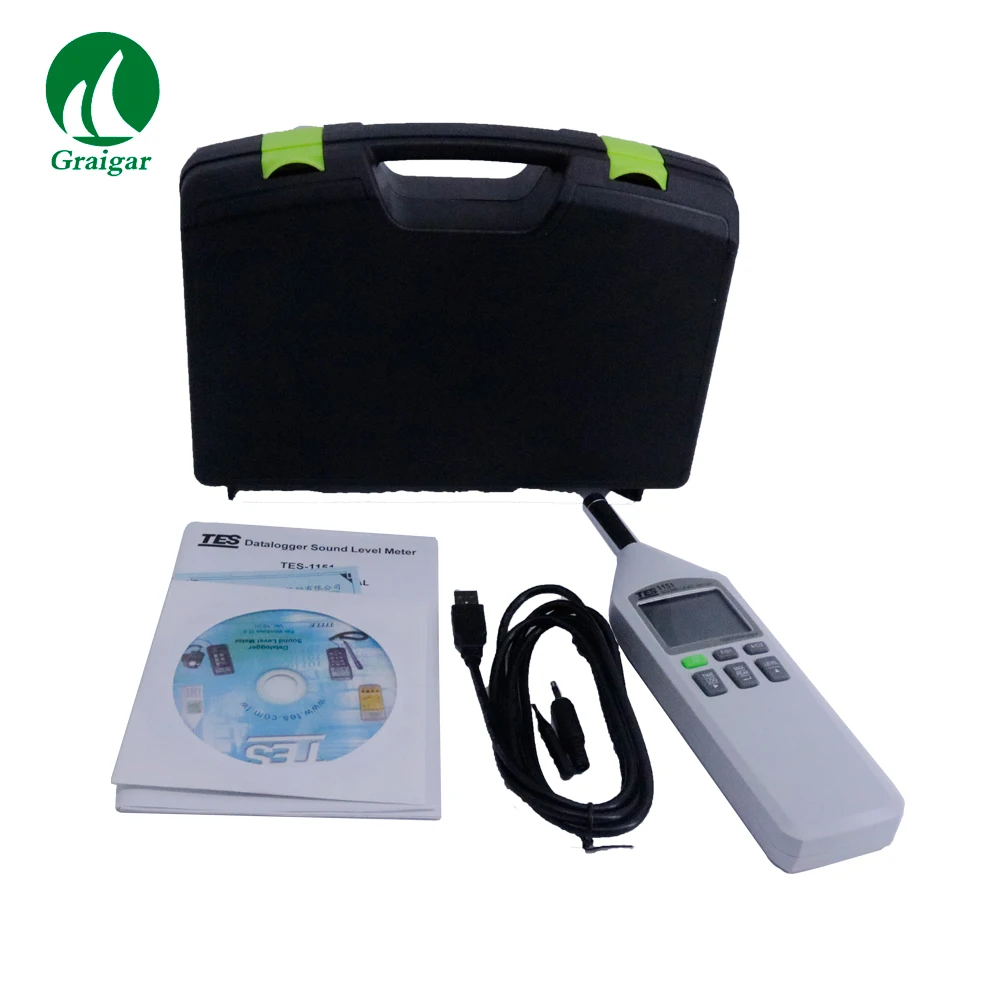

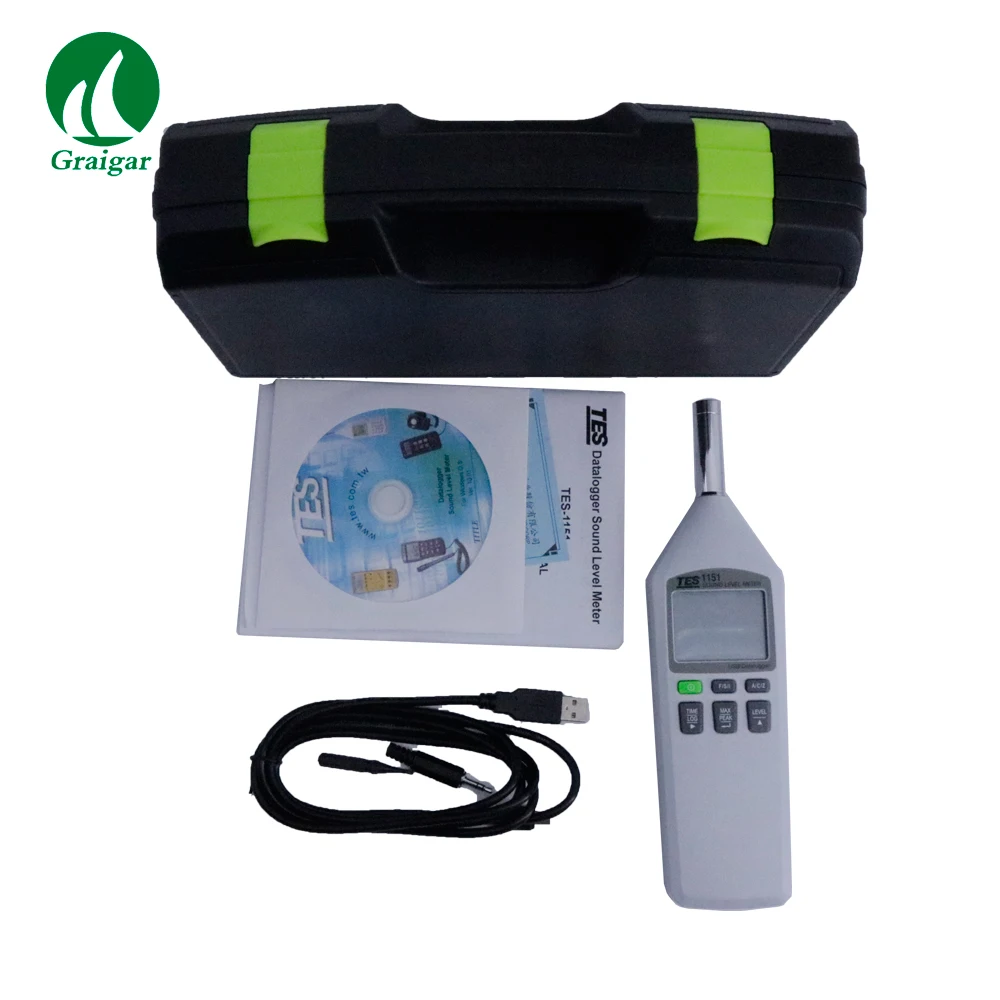

|nstruction manual, Carrying case, 3.5f plug, Adjustment screwdriver, windscreen CD Software (1151) micro-USB Cable (1151). |
|
|
Optional Accessory |
AC adaptor DC9V (1151) |
|
