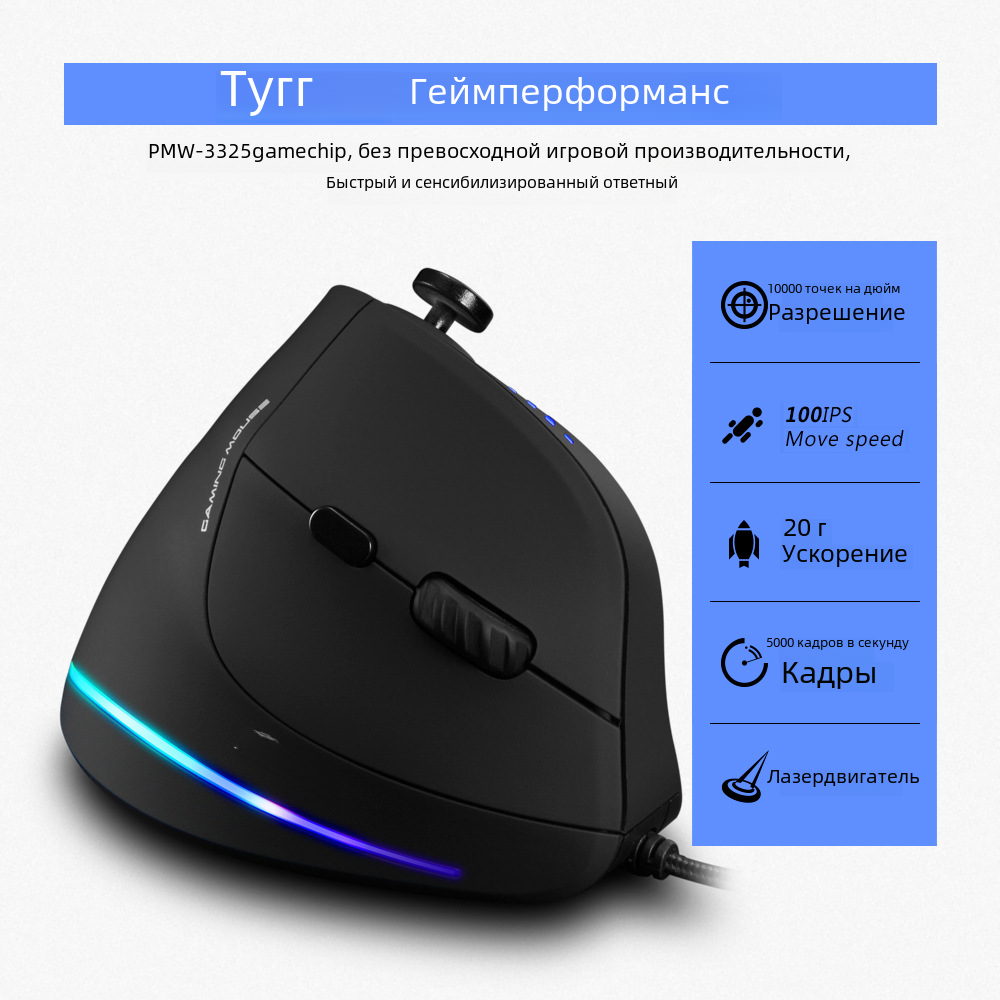

Вертикальная игровая мышь Zelotes, джойстик, программируемый RGB-маркер, проводная мышь-стойка, макро, цифровой компьютер/оптический компьютер

Component function description

●①Left Button          ②Right Button          ③Middle Button

  ④Forward Button        ⑤Back Button         ⑥DPI Button

  ⑦W ⑧S ⑨A ⑩D  ⑾Press and Space Button

●Five-level DPI varying velocity.

Five adjustable DPI level, 1500-2500-4000-7000-10000DPI respectively, from low to high. Four DPI indicator lights are configured, the first light is on 1st, the second light is on the second, and the fourth light is on the fifth (10000DPI). One light on indicates the first level, two lights on indicates the second level, all four lights on indicates the fifth level (10000DPI).

●Photoelectric chip using PAW3325.

●Color-changing RGB marquee belt on both sides.

Specification

Button numbers：11

Traction control: optics

USB length: 1.8m

Working voltage/current: 5V  100mA

Button life: 10 million times

Roller life: 1.2 million rotation

Product size: 110*72*76.5mm

Product weight: 165±5g

Resolution: 1500-2500-4000-7000-10000DPI

Rate of return: 125-1000Hz

(Note: The pattern quoted in this manual is only for the purpose of function description.

Please refer to the product for purchase.)

For more features, please visit the website  Http：//www.zelotes.cn！

组件功能说明

●①左键        ②右键       ③中键       ④前进键

  ⑤后退键     ⑥DPI键    ⑦W      ⑧S       ⑨A      ⑩D

  ⑾下压空格键

●五档DPI变速。

5档可调DPI，从低到高分别为1500-2500-4000-7000-10000DPI。配置4个DPI指示灯，1档亮第1个灯，2档亮第2个灯，第5档（10000DPI）4个灯全亮。

●光电芯片采用PAW3325

●两侧配置七彩变幻RGB跑马灯带。

规格参数

按键数：11键

循迹系统：激光

USB线长：1.8m

工作电压/电流：5V  100mA

按键寿命：1000万次

滚轮寿命：120万转

产品尺寸：110*72*76.5mm

产品重量：165±5克

解析度：1500-2500-4000-7000-10000DPI

回报率：125-1000Hz

（注：本手册所引用的图案仅做为功能说明用途，购买产品请参照实物！）

 更多功能，请浏览官网Http：//www.zelotes.cn！
