HD VIDEO CONVERTER

User Manual

YPBPR+L/Audio TO HDMI Converter


It is the YPbPr (color difference) and left and right channels into HD output, support for Full HD 1080P resolution, let PC
Users show their image not only on the monitor of the PC, but also on the TV, the conversion is with R / L audio. The number provided by the converter
Entertainment centers, HDTV retail and display venues, HDTVs, set-top boxes, DVDs and projectors, noise space and security issues, data
Heart Control, Information Assignment, Conference Room Presentations, Solutions for Schools and Business Training Environments.

Product Features
The series of HD converters have many features that make them an excellent way to execute. Among these features, you will find:
1.easy to use: install in a few seconds, no need to set.
2.it can convert the complete YPbPr + L / R audio to HD output.
3.support HDCP1.2
4. each channel supports 165MHz / 1.65Gbps (6.75Gbps all channels) bandwidth HD output.
5.supporting real analog video output up to UXGA and 1080p, 10-bit DAC
6.LED signal and power mode.

7, power supply (5V 1A)

4.OPACKAGEC ONTENTS
Before attempting to use this unit, please check the packing and make sure the following itemsare contained in the shipping carton:
1.Main unit
2.5V DC Power Supply
3.User's Manual
5.OPANEL DESCRIPTIONS

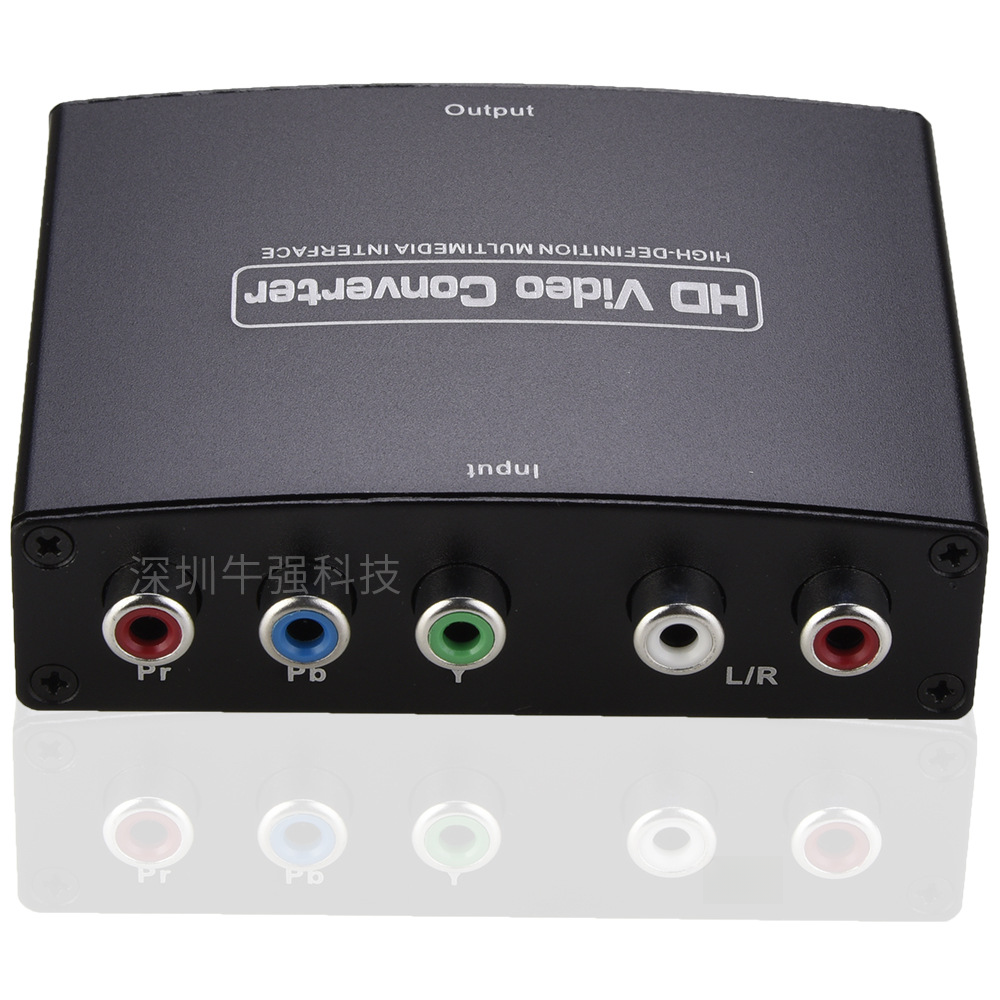

Please study the panel drawings below and become familiar with the signal input(S), output(S) and power requirements.

6.0 CONNECTION AND OPE RATION
Before installation, please make sure all devices you wish to connect have been turned off
1.Connect the YPbPr signal and R/L audio input of this product to the Converter.
2.Connect the HD output from converter to the this Display(Input cables are optional)
3.Insert the DC side of 5V power supply into this product and then connect the AC side of the power supply into the wall outlet.
4.Power on all connected devices, Choose the input of the display, device to its YPbPr channel.
5.The imagedoes not need to be adjusted, the Converter will position it automatically, the user may adjust the horizontal position under some extreme condition.

AttentionrInsert/Extract cable gently.
Note:The following two problems may existing when using this HD to YPbPr Converter.

1.Some traditional CTR display not work after connected witch this Converter This mainly caused by these Displays only supporting 480i and 576i YPbPr interlaced resolution. Therefore, we suggest to choose LCD Display or those can support YPbPr CRT Displays.
2.Some connected Displays may have no image after setting the resolution of HD source at 1080P This not caused by our products but YPbPr channel of Displays not supporting resolution at 1080P

高清色差分量（YPbPr）转HD高清视频转换器

高清色差分量（YPbPr）转HD高清视频转换器，是一款可以将YPbPr（色差）信号，AUDIO（L/R）立体声信号通过数字处理转换成高清HD音视频信号输出，采用同三维直通技术将清晰生动的画面栩栩如生地展现在您的面前，可以将YPbPr信号提升为1080P的逐行型号，图像更为清晰稳定。可以使只有YPbPr输出的设备，例如普通摄像机、PS2、XBOX、机顶盒、DVD、播放机等，连接至全高清（1080P）大屏幕电视机HD通道，可以让你很轻松的在全高清电视机上欣赏高清影片、玩游戏。
色差转HD高清转换器使用范围：
数字LED电视/云电视/Apple TV/蓝光机/XBOX360/数字机顶盒/网络电视盒等所有带有色差（即YPbPr）接口的设备，都可以使用该设备转换成高清的HD信号输出，享受高清视频体验。该设备可以将色差信号完美无损解码，传输到高清视频输出设备上，实现高清视频体验。

设计理念：
高清色差分量转HD转换器产品是采用最新数码技术开发的新一代产品，支持色差分量输入，左右声道音频输入，HD高清音视频信号输出。该产品采用3D补偿专利技术将清晰生动的画面栩栩如生的展现在你面前，将红、绿、蓝三原色完美还原。
接口功能：
1、输入接口：YPbPr、AUDIO-IN
2、输出接口：HD
功能与特点：
1、将高清晰度色差分量信号通过模拟信号-数字信号的转换芯片，变为标准高清HD输出模式。
2、模拟stereo(R/L)信号无损转换成数字HD音频信号。
3、轻松地连接到HD高清接收设备
4、安装简单，操作简单。
色差分量YPbPr转HD转换器特性：
1、YPbPr转HD转换器随插即用，无需安装任何软件，使用方便。
2、支持PS2、XBOX、机顶盒、DVD、播放器等
3、色差输入支持：567i、576@50、480@60、480@59、720@50、720@59、720@60、1080i@24、1080i@25、1080i@29、1080i@30、1080P@59、1080P@60等众多格式YPbPr信号输入。
4、音频输入：支持一路立体声输入
5、HD输出:采用视频直通技术，直接把图像转换成高清HD输出。支持高达1080P分辨率，将清晰生动的画面栩栩如生的展现在您面前。内置音频转换功能同步视频HD输出，视听精彩呈现。
6、支持亮度、色度、对比度调节功能，可简单方便自由切换清晰度。
7、可以将前端送来的高速模拟信号编码成高清晰的HD信号输出，最高支持1080P/1.3版，符合HD1.3标准，兼容HDCP协议。
