When there is a magnetic field, there is no need for metal contact, and the test lamp lights up immediately, for example, the coil in a solenoid valve is activated. It can sense all types of magnetic fields, from alternating current and direct current to permanent magnets.

The body of the product is made of ABS material, and the appearance of the human-machine concept design makes the product feel better and more humane

White LED light can be used as searchlight

The end cap of the magnet test pen has a permanent magnet to check whether the product is available



Example of using magnetic pen:

Detect solenoid valves in pneumatic and hydraulic control equipment

Detection coil relays and electronically controlled solenoid valves are suitable for all types of vehicles and machines.

When servicing the oil burner, check the solenoid valve



When there is a magnetic field, no metal contact is required. The test lamp lights up immediately. For example, the activation of a coil in a solenoid valve can induce all types of magnetic fields, from alternating current and direct current to permanent magnets.



Instructions for use of magnetic pen:



First check the battery according to the "Function Check" instructions below.



Just touch the test object with the magnetic pen probe, if the test light is on, it means the object has a magnetic field



No need to stop the machine or equipment when testing



Sometimes, the stray magnetic field from other equipment in the accessory can cause the test light to flicker instantaneously. When approaching an activated magnetic coil, the test light will always be on



Functional inspection of magnetic pen:

Unscrew the magnet cover from the battery cover and remove it

Move the magnet cover to the front probe of the test pen, the test light should be on

If the test light does not light up, please replace the battery



Model: AE200

Material: ABS

Size: 154*19*24.5MM

Weight: 28g

Packing size: 225*135*25MM

Package weight: about 86g

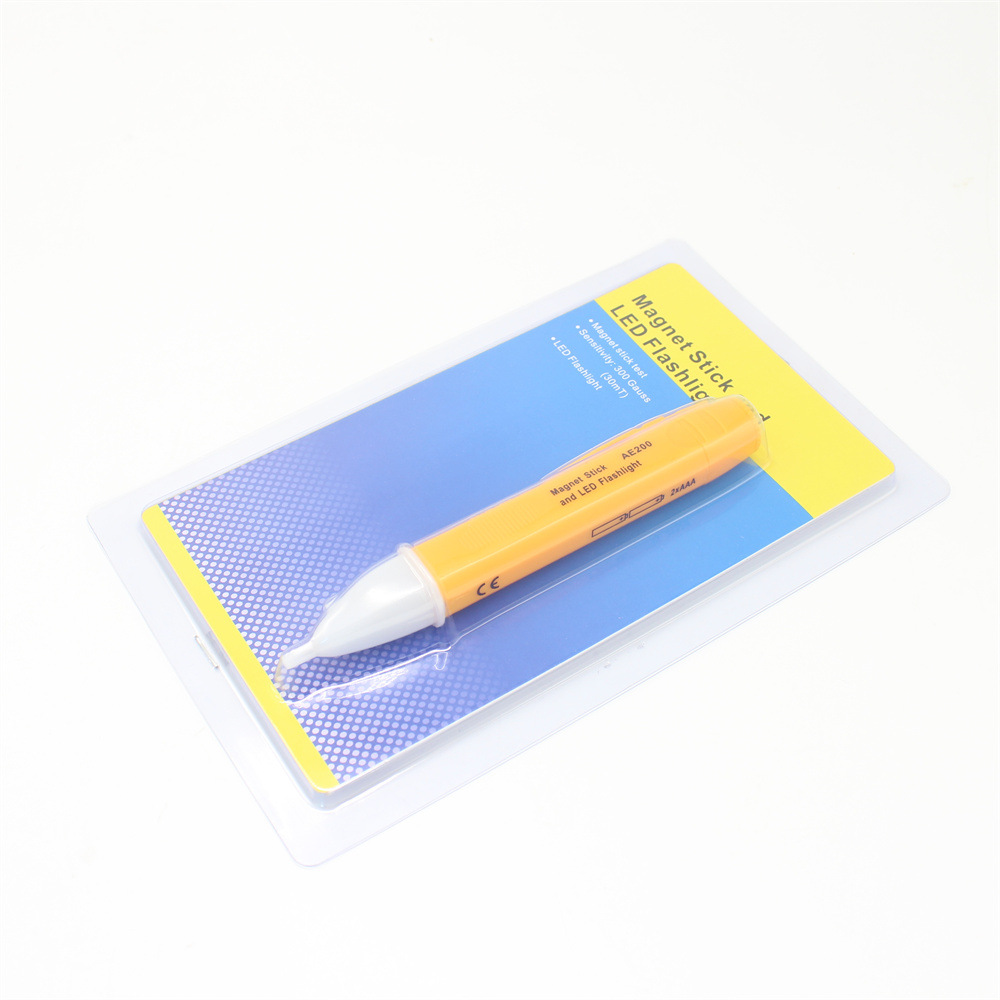

Packing method: blister + color card

Sensitivity: ≥300 Gauss (30MT)

Application scope: testing of electronically controlled solenoid valves and coil relays in pneumatic and hydraulic control equipment
